1.5L REVOTORQ BS VI ENGINE
146

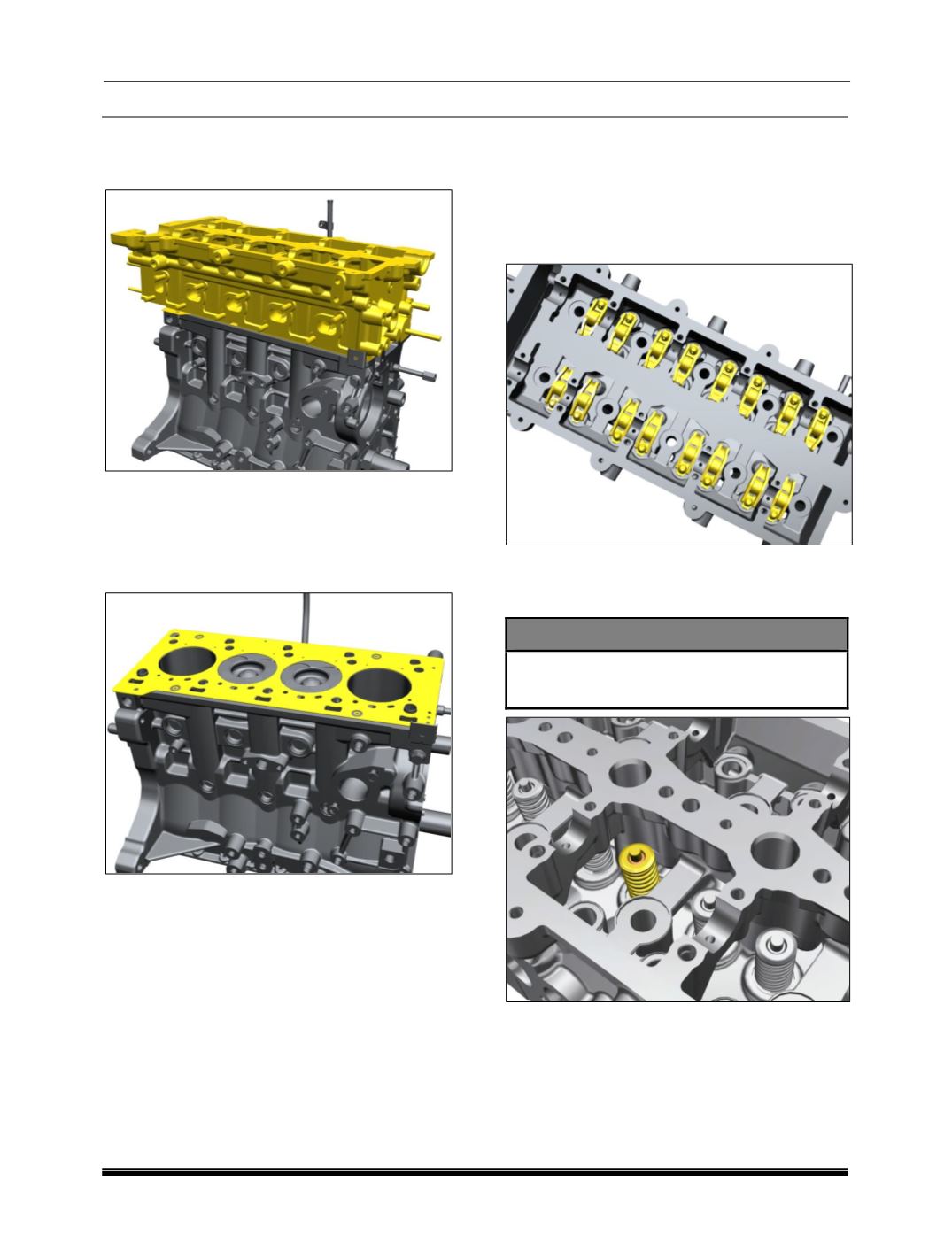

7. Slightly lift the cylinder head to clear locating
hollow dowel in crank case, and place it on a
table
.
NOTE
Gently place the cylinder head on a table with clean
surface, and take care to avoid damage to the head
surface, valves and glow plug projections
.
8. Remove the cylinder head gasket.
x. REMOVAL OF CYLINDER HEAD SUB-
ASSEMBLIES
1. Remove all the roller finger followers (RFF)
along with hydraulic lash adjusters (HLA) by
lifting them vertically and placing them in correct
sequence and in vertical direction only to avoid
oil drain from HLA.
2. Using valve spring compressor (2868 5890 06
02), compress valve springs and remove lock
halves
.
SPECIAL TOOL
Valve Spring Compressor -:
2868 5890 06 02
