1.5L REVOTORQ BS VI ENGINE

121

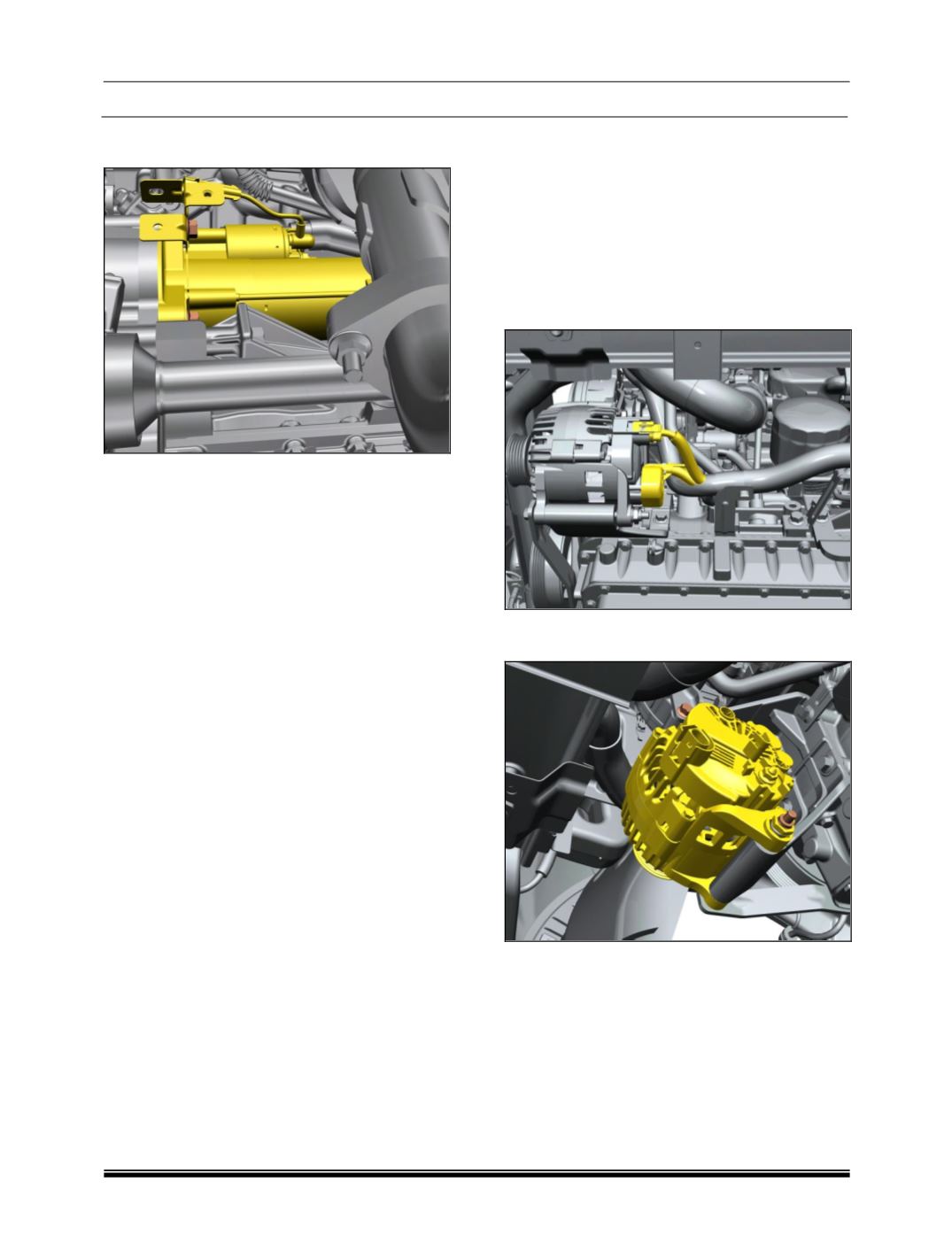

8. Loosen and remove the bottom mounting

bolts of the starter motor.

9. Take out the starter motor along with harness

support brackets.

REFITMENT

For fitment follow removal procedure in reverse.

I. ALTERNATOR

REMOVAL

1. Remove the alternator belt.

(For removal

procedures refer compressor and alternator

belt replacement).

2. Remove the splash guard.

(For removal

procedures refer body section).

3. Remove the electrical connections of the

alternator.

4. Loosen and remove the mounting bolts on the

alternator support brackets.

5. Take out the alternator.
