1.5L REVOTORQ BS VI ENGINE

117

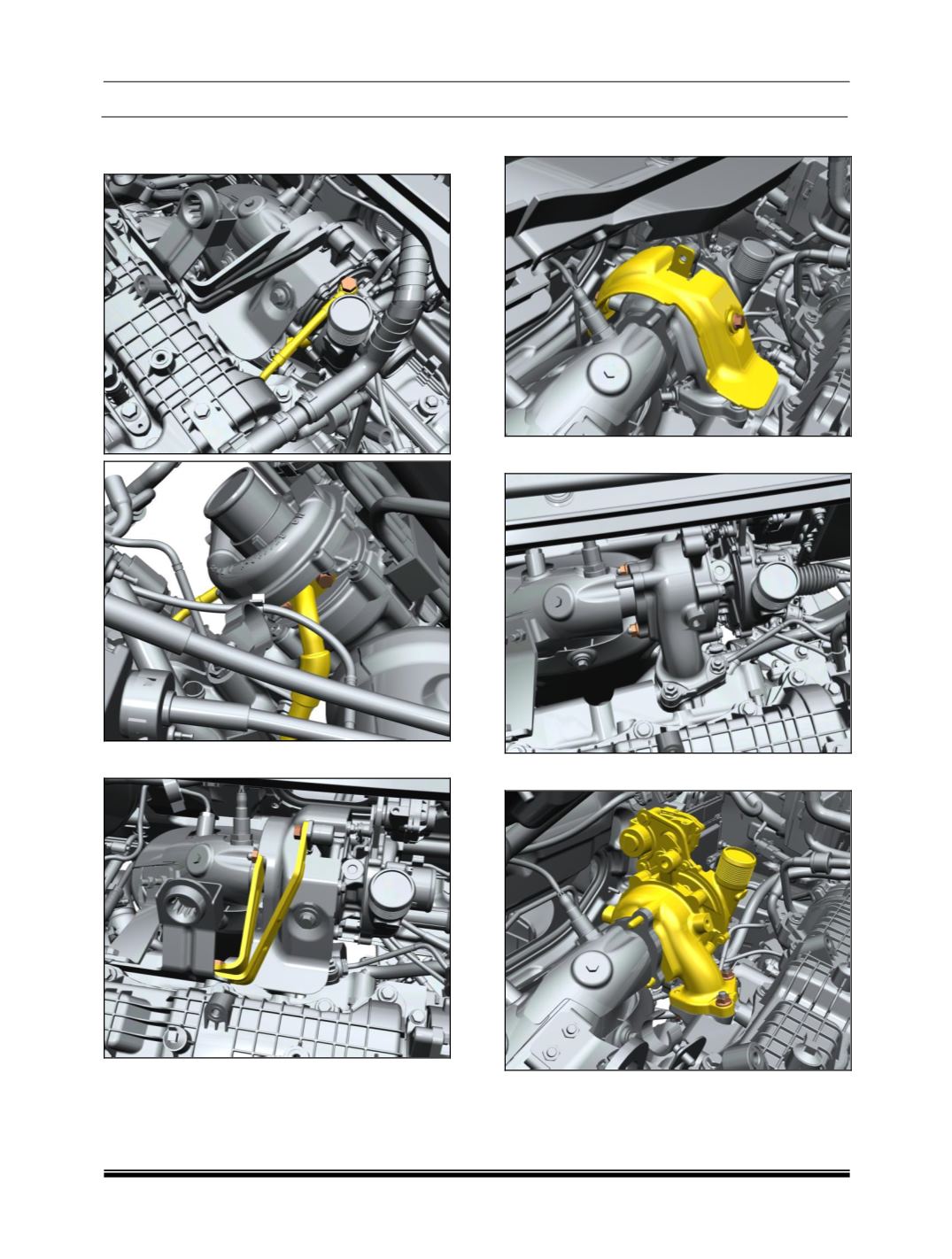

6. Disconnect the turbocharger oil inlet and

outlet pipe.

7. Remove the support brackets.

8. Remove the turbocharger heat shield.

9. Remove the mounting fasteners.

10. Remove the turbocharger.

FITMENT

For fitment follow removal procedure in reverse.
