1.5L REVOTORQ BS VI ENGINE
79
C. COOLING SYSTEM

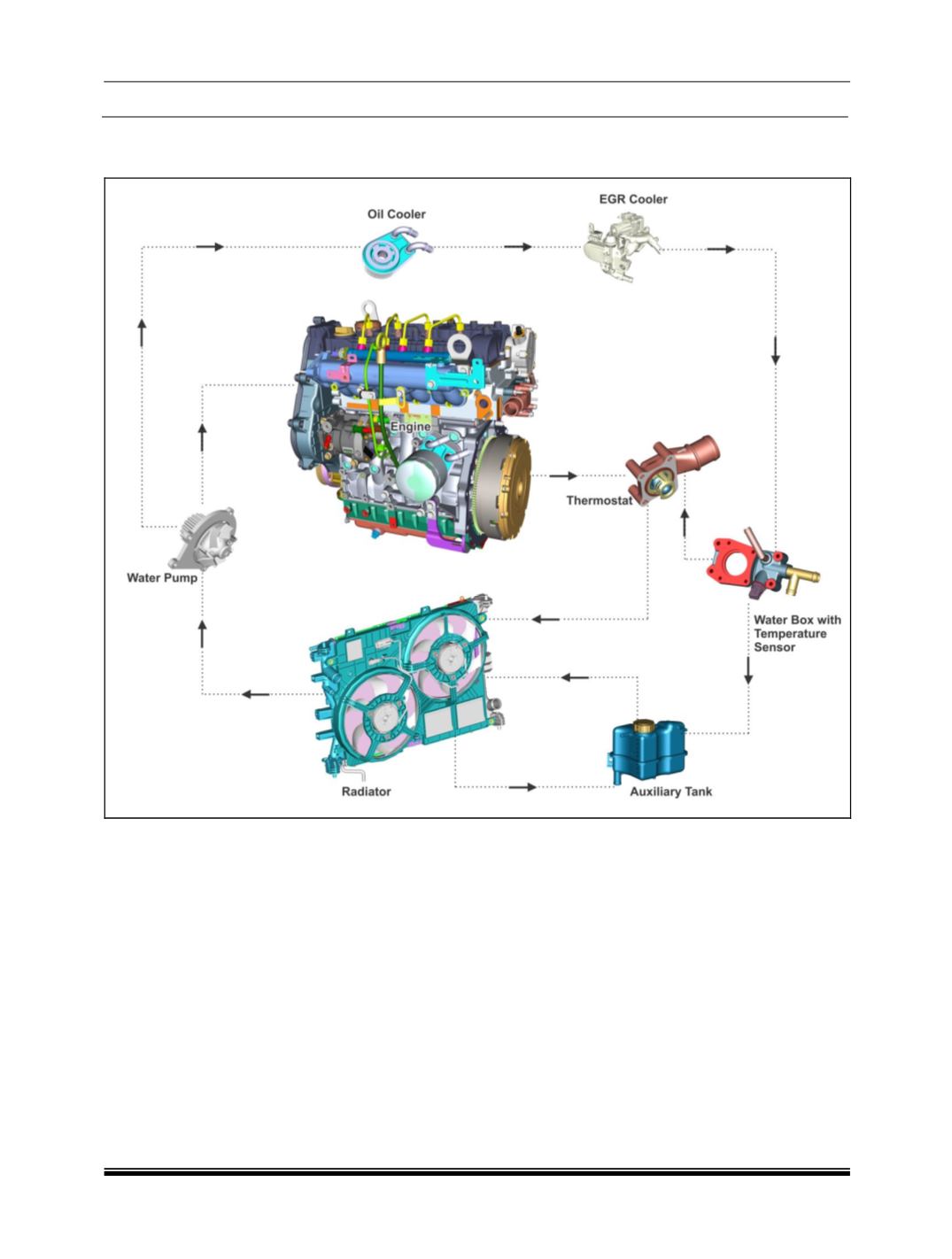

Cooling System Schematic Layout
Description
The above figure gives the coolant flow circuit with
the components. The coolant flow is controlled by
the thermostat
.
In addition to the Cylinder head and
block, the coolant also circulates through Oil cooler,
and radiator
.
Auxiliary tank is provided to compensate for the
drop in coolant level. In addition there is a de-
gassing line connected between thermostat housing
and radiator top tank. These help in maintaining the
system pressure created by expansion and
contraction of the coolant.
The Cooling system consists of the following
components.
1. Radiator.
2. Auxiliary Tank
3. Thermostat.
4. Water pump.
