893 / 1119
ELECTRICAL
80
•

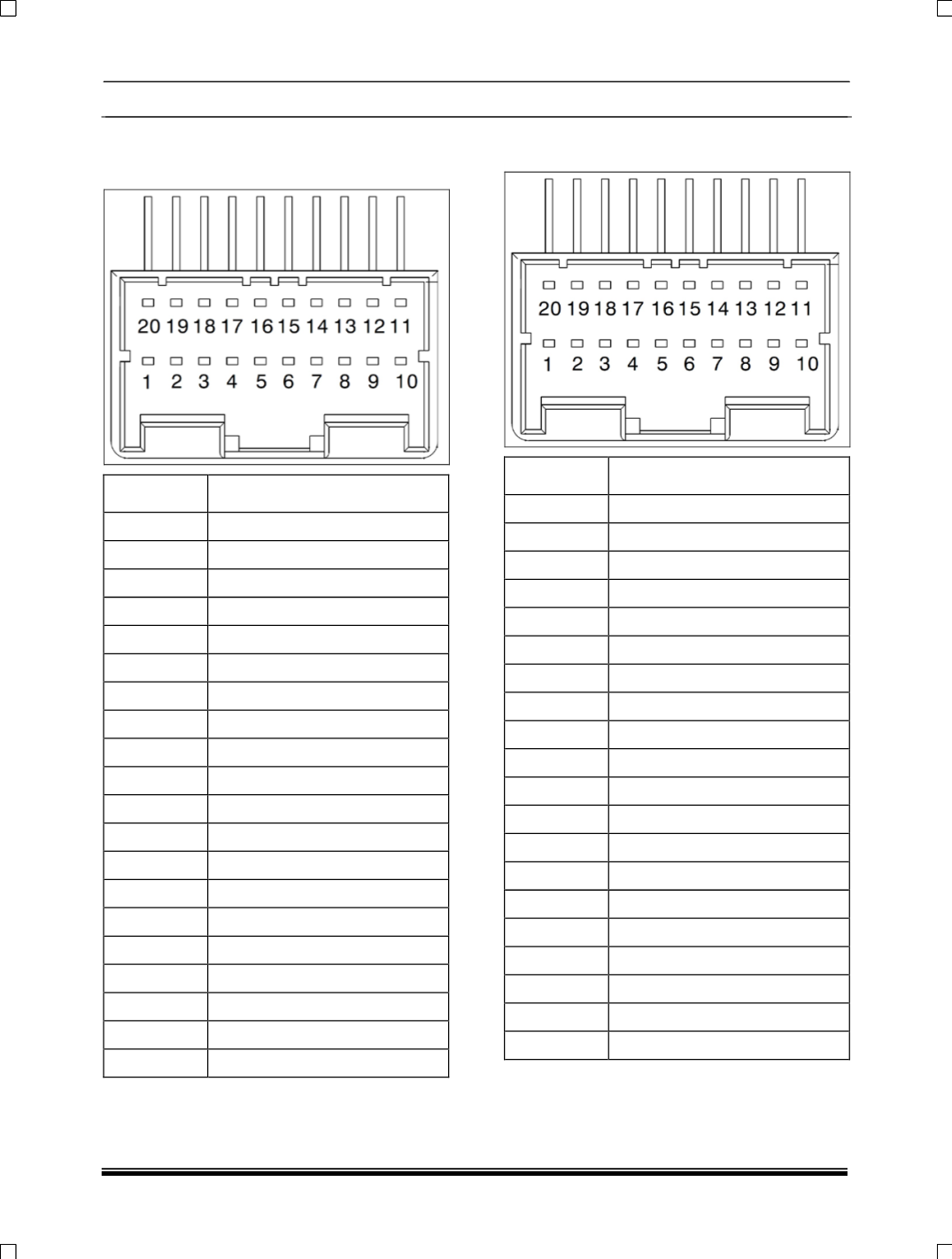

Four Door Power window switch is 20 pin
connector. For pinouts details refer below
Table.
PIN
DESCRIPTION
1
WINDOW LOCK
2
BLANK
3
BLANK
4
REAR RH (UP)
5
REARRH(DOWN)
6
EARTH
7
REAR LH(DOWN)
8
BLANK
9
REAR LH(UP)
10
+VE FORW/LOCK INDICATOR
11
BLANK
12
FRONT LH (DOWN)
13
FRONT LH(UP)
14
BLANK
15
BLANK
16
-VE LED ILLUMINATION
17
+VE LED ILLUMINATION
18
FRONT RH(UP)
19
FRONT RH(DOWN)
20
BLANK
•
Two Door Power window switch is 20 pin
connector. Pinouts details refer below Table.
PIN
DESCRIPTION
1
-----
2
-----
3
-----
4
RH (UP)
5
RH (DOWN)
6
EARTH
7
LH(DOWN)
8
-----
9
LH (UP)
10
-----
11
-----
12
-----
13
-----
14
-----
15
-----
16
-VE LED ILLUMINATION
17
+VE LED ILLUMINATION
18
-----
19
-----
20
-----
