LOCATION:
It is located on the steering wheel.

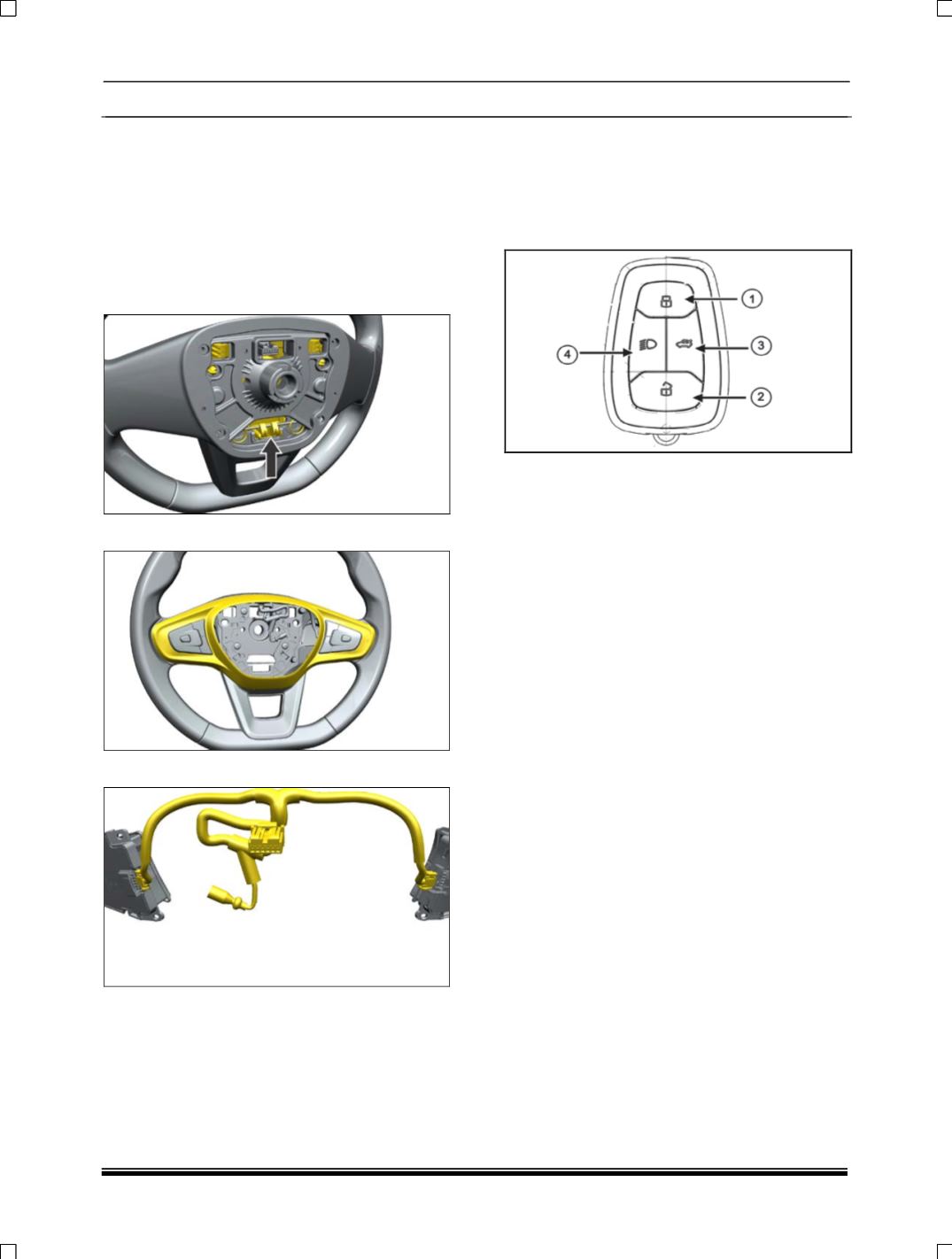

REMOVAL:
1. Remove steering wheel. Refer “Removal &
Refitment of steering wheel" from Steering
Section
2. Pull out and unlock the front cover of the
steering wheel.
3. Pull out the horn pad of wheel.
4. Remove electrical connections.
5. Take out the switches.
INSTALLATION:
1. Locate the switches on the steering wheel.
2. Fit the bottom cover of steering wheel.
3. Fit the steering wheel.
25. IGNITION E-KEY ( If Applicable )
An E-Key is an electronic access and
authorization system which is provided as a
standard feature on your vehicle. Vehicle is
provided with two E-Keys. Each Key is specific to
the immobilizer of vehicle.
FUNCTIONAL DETAILS
1. Lock
2. Unlock
3. Trunk open
4. Tailgate (Press follow-me button for 2sec)
Unlocking principle:
The transponder, which is built into the ignition E-
Key, carries a unique identification code. The
vehicle unlocks when the code on the E-Key
matches with the code on the Engine
Management system (EMS).
Engine Starting:
When the key is inserted and the ignition is
switched ON, all codes are communicated within
concerned components (E-Key, Immobilizer and
EMS). The engine will start only if all the codes
match.
KEY SPECIFICATION
1. Operating temperature range (with battery): -
10C to +60C.
2. Operating temperature range (without battery-
external power supply): -40 C to +85 C.
3. Storage temperature range (without battery): -
40C to +85C.
4. Remote operating voltage range: 2.53 to 3.2V.
5. LED Blinking: Normal condition - 20ms blink,
Low battery - 5blinks@10Hz after button
release
6. Force required opening Battery Cover from
RKE: Min. 30 N.
7. Remote power @ 3 meter from Antenna: -
12dBm.
8. Carrier frequency with deviation: 433.92 MHz
+- 75 KHz.
