For 1.5L CRAIL (Diesel Engine)

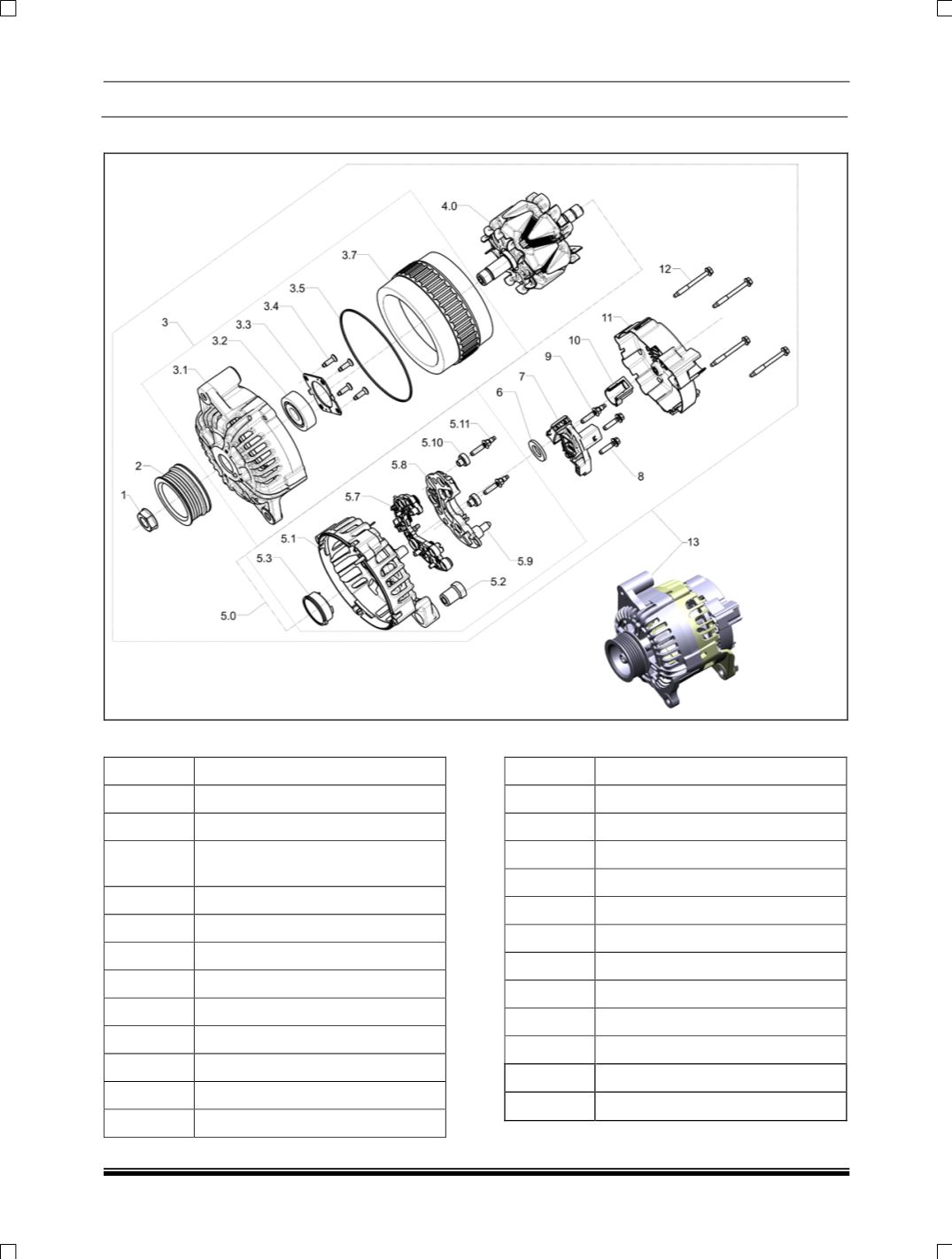

ALTERNATOR (PART LIST):
ITEM NO. DESCRIPTION
1.0
PULLEY NUT
2.0
PULLEY
3.0
FRONT BRACKET COMPLETE
ASSEMBLY
3.1
FRONT BRACKET MACHINED
3.2
FRONT BEARING
3.3
RETAINER BRACKET
3.4
RETAINER SCREW
3.5
O-RING
3.7
STATOR ASSEMBLY
4.0
ROTOR ASSEMBLY
5.0
RECTIFIER ASSEMBLY
5.1
REAR BRACKET MACHINED
ITEM NO. DESCRIPTION
5.3
REAR BEARING CAP
5.7
CONNECTOR
5.8
HEAT SINK
5.10
INSULATION BUSH
5.11
STUD BOLT
6.0
RED SEAL
7.0
REGULATOR
9.0
STUD BOLT
10
SLIP RING GUIDE
11
REAR COVER
12
ASSEMBLY SCREW
13
ALTERNATOR 12 V, 110A
