ELECTRICAL
9
skin can cause severe burns. Wear protective
clothing and a face shield or have a skilled
technician to do the battery maintenance. The
battery contains sulphuric acid (electrolyte) which
is poisonous and highly corrosive in nature.

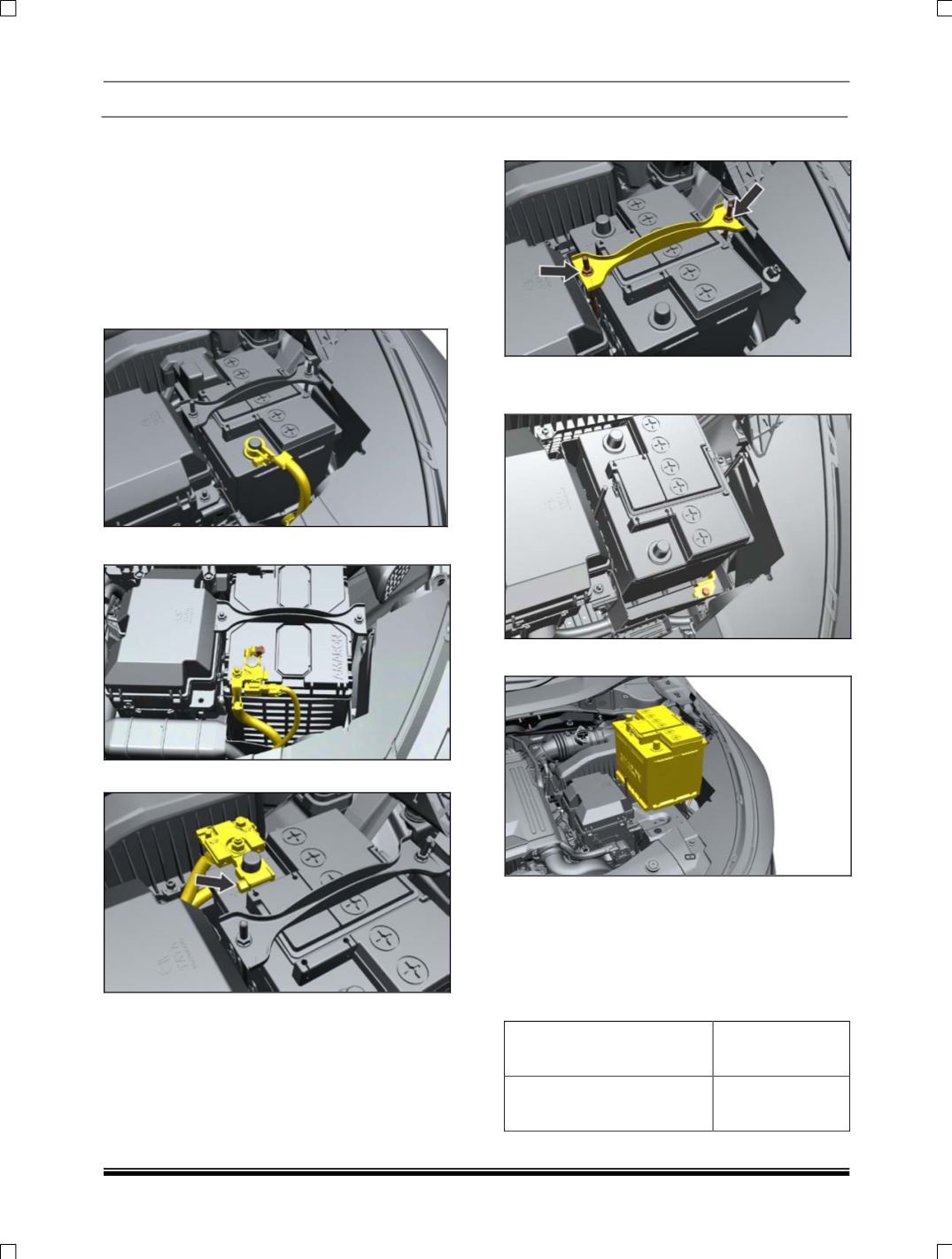

REMOVAL AND REFITMENT OF BATTERY
REMOVAL
1. Remove battery’s negative terminal.
•
For Non IAC/ ESS variant
•
For IAC/ ESS variant
2. Remove positive terminal.
3. Remove battery’s top clamp
4. Remove the battery side-locking bracket (2
qty. for Diesel variant).
5. Remove Battery from battery tray.
REFITMENT
1. Put Battery on Battery tray.
2. Tighten Battery holding clamps.
Refit Battery cable Terminals.
BATTERY CLAMP TORQUE TABLE
APPLICATION
TORQUE
VALUE
Mounting Screw for Battery
on Clamp (M8x18)
1.2 – 1.3 Kgfm
