ELECTRICAL
12

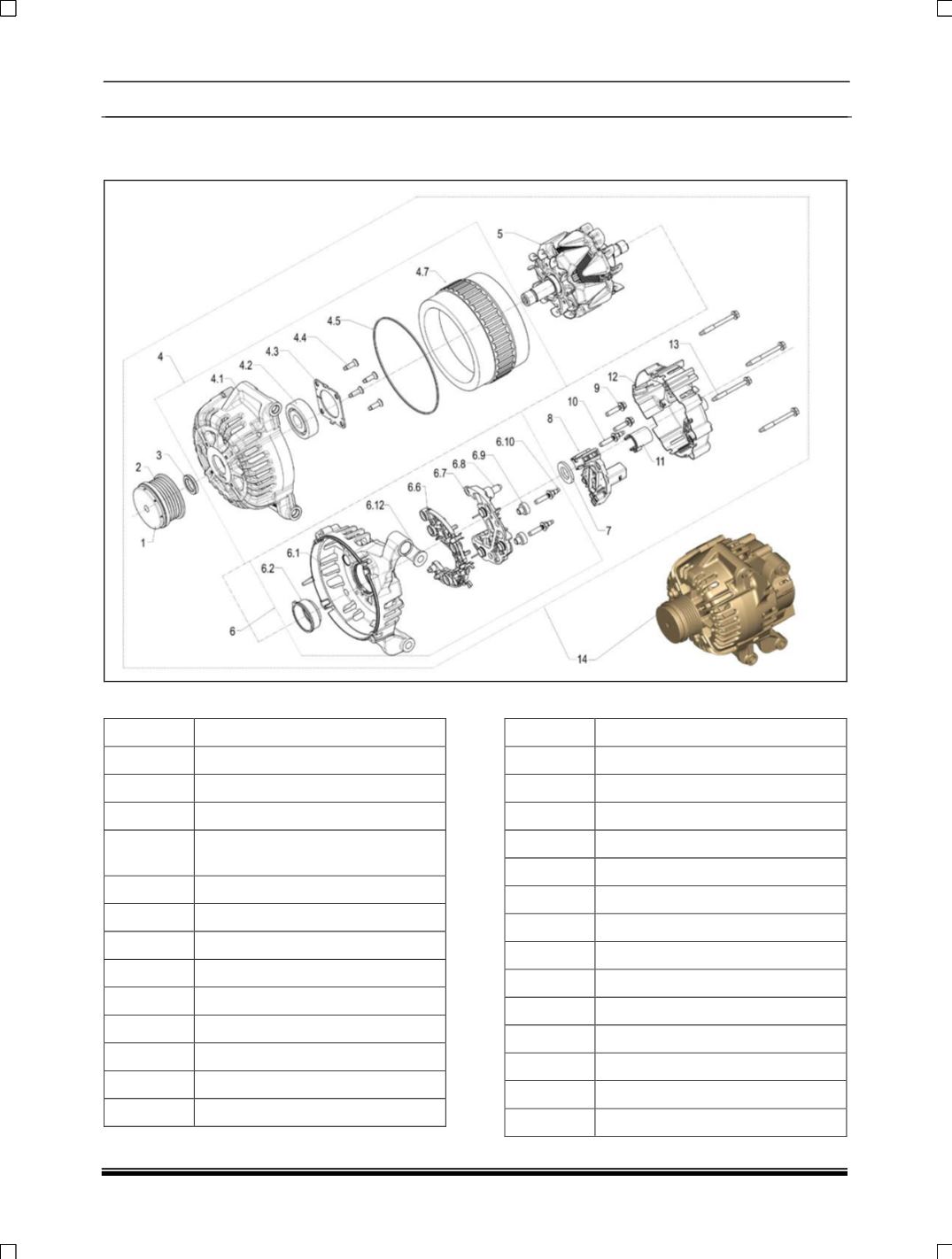

EXPLODED VIEW:
For 1.2L NG / TC (Petrol Engine)
ALTERNATOR (PART LIST):
ITEM NO. DESCRIPTION
1.0
PULLEY CAP
2.0
PULLEY
3.0
PULLEY SPACER
4.0
FRONT BRACKET COMPLETE
ASSEMBLY
4.1
FRONT BRACKET MACHINED
4.2
FRONT BEARING
4.3
RETAINER BRACKET
4.4
RETAINER SCREW
4.5
O-RING
4.6
RESIN
4.7
STATOR ASSEMBLY
5.0
ROTOR ASSEMBLY
6.0
RECTIFIER ASSEMBLY
ITEM NO. DESCRIPTION
6.1
REAR BRACKET MACHINED
6.2
REAR BEARING CAP
6.6
CONNECTOR
6.7
HEAT SINK
6.8
B+TEWINAL
6.9
INSULATION BUSH
6.10
STUD BOLT
6.12
BUSH
8.0
REGULATOR
9.0
SCREW
10
STUD BOLT
12
REAR COVER
13
ASSEMBLY SCREW
14
ALTERNATOR 12 V, 110A
