TRANSAXLE - TA5260
23

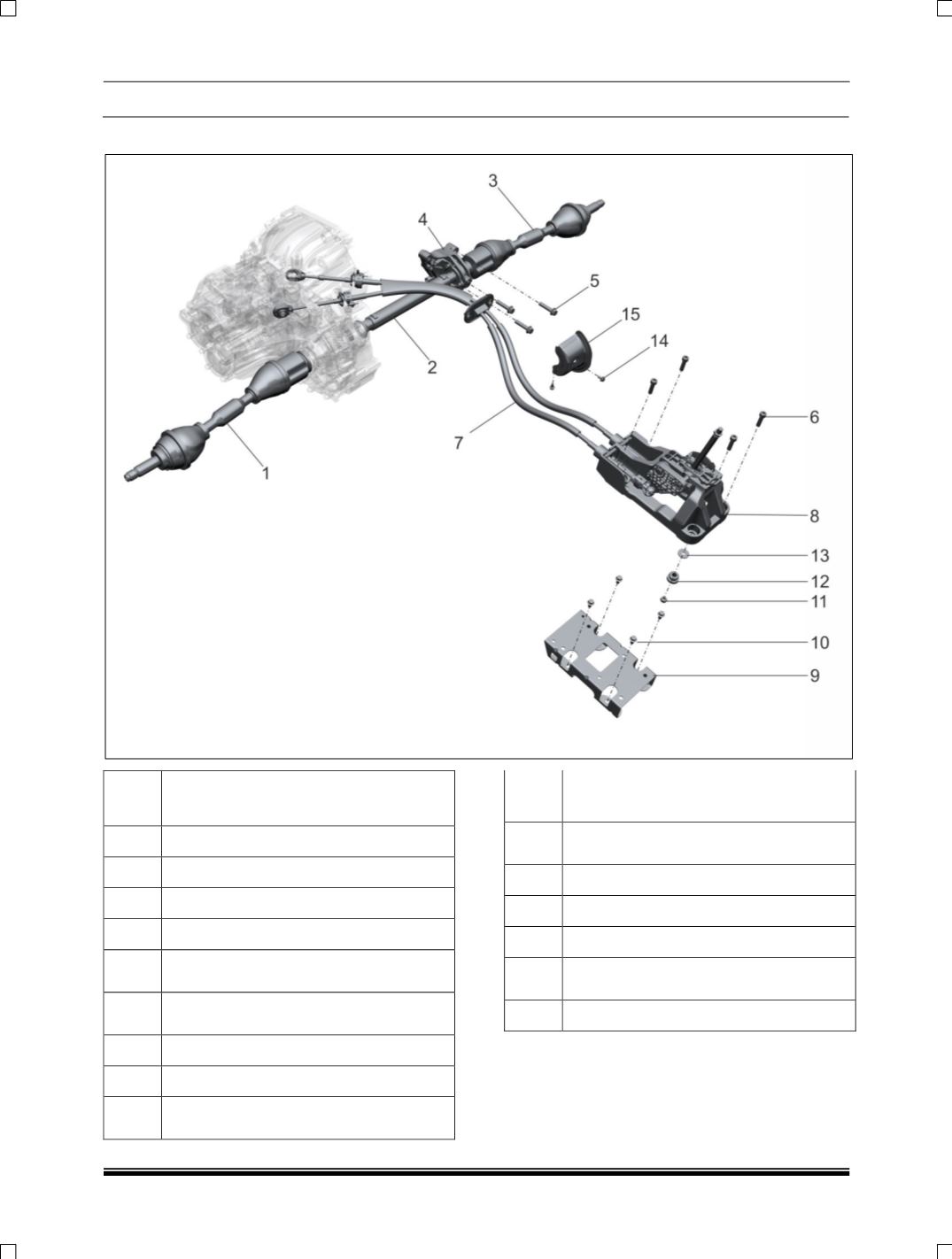

EXPLODED VIEW OF GEAR SHIFT LINKAGE ASSEMBLY:
SR.
NO.
DESCRIPTION
01
DRIVE SHAFT ASSY,LH
02
ASSY.INTERMEDIATE SHAFT (RH)
03
DRIVE SHAFT ASSY,RH
04
BRACKET (INTERMEDIATE SHAFT)
05
HEX FL BOLT M10X45 TS17130-8.8-
SS8451S2-Y
06
CAP SCREW M8X30-IS2269-12.9-
SS9400
07
ASSY CABLE
08
GEAR SHIFTER MTG BKT ASSY
09
BASE PLATE,GEAR SHIFT LEVER
MTG BRACKET
SR.
NO.
DESCRIPTION
10
H/FL SCR M8X16 TS17130-8.8-
SS8457S1-S-B
11
HEX WELD NUT M8 IS8856
12
28532680_BUSH
13
WASHER A8.4 IS5370 ST SS8451S2-Y
14
HEX FL SCR M6X12 TS17130-8.8-
SS8451S2-Y
15
HEAT SHIELD
