TRANSAXLE - TA5260
20

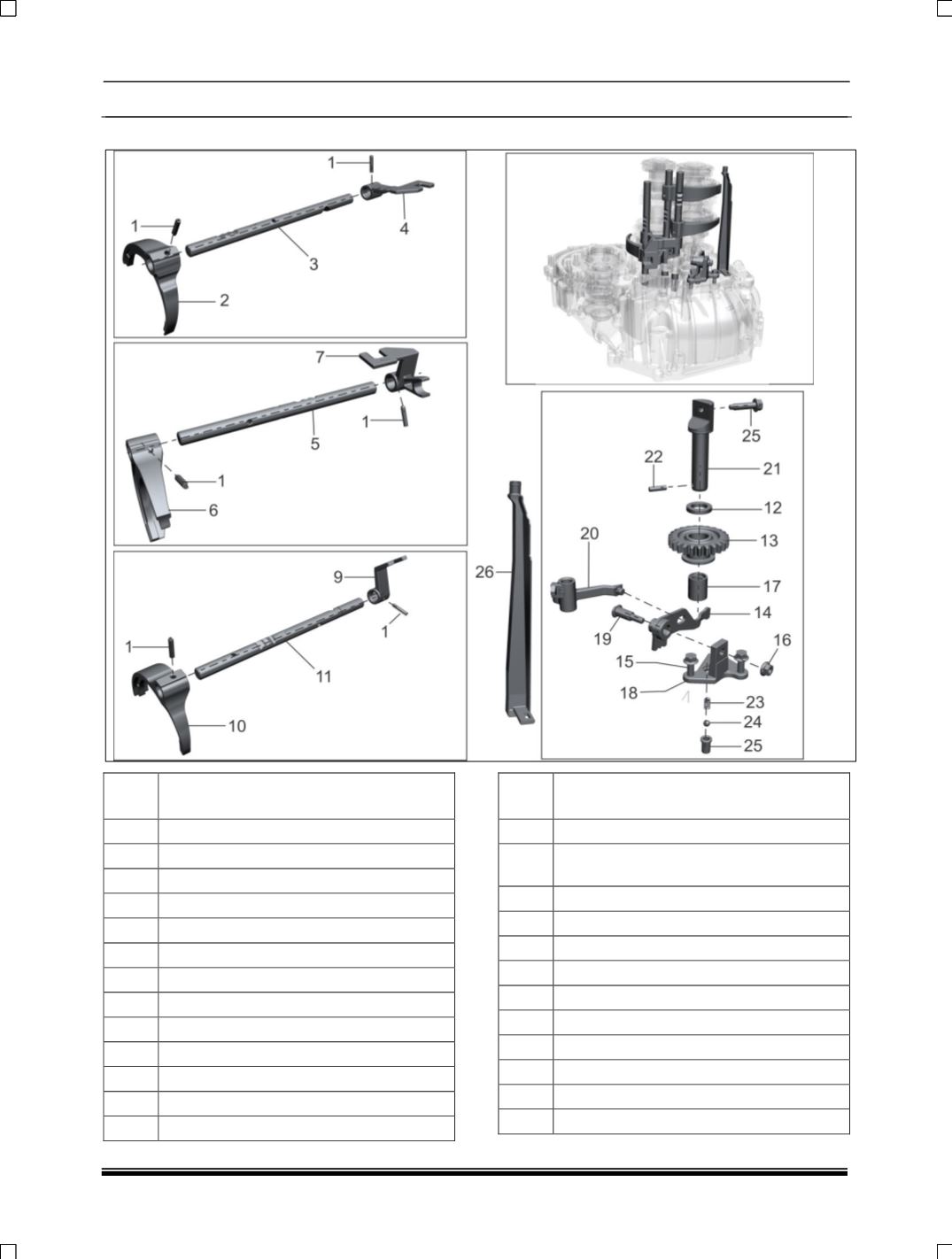

EXPLODED VIEW OF ASSEMBLY SHIFTER SHAFT & REVERSE IDLER SHAFT:
SR.
NO.
DESCRIPTION
1
ASSY DOWEL SLEEVE
2
SHIFTER FORK (3rd/4th SPEED)
3
SHIFTER SHAFT (3/4 SPEED)
4
SHIFTER DOG (3/4 SPEED)
5
SHIFTER SHAFT (1/2 SPEED)
6
SHIFTER FORK (1/2 SPEED)
7
SHIFTER DOG (1/2 SPEED)
9
SHIFTER DOG (5 SPEED)
10
SHIFTER FORK (5 SPEED)
11
SHIFTER SHAFT (5 SPEED)
12
SPACER(REVERSE IDLER)
13
REVERSE IDLER GEAR
14
REVERSE LEVER ASSY.
SR.
NO.
DESCRIPTION
15
HEX FL SCR M8X22
16
HEX FL NUT AM8 TS17430-8-
SS8451S2-Y
17
BUSH (REVERSE IDLER GEAR)
18
REVERSE LEVER BRACKET
19
PIVOT PIN (REVERSE LEVER)
20
SHIFTER DOG (REV.SPEED)
21
SHAFT (REVERSE IDLER)
22
CYL PIN 6 M6X22
23
SPRING (REVERSE DETENT)
24
BALL 8 DIA GRADE
25
BARREL REVERSE DETENT
26
OIL CHANNEL
