TRANSAXLE - TA5260
17

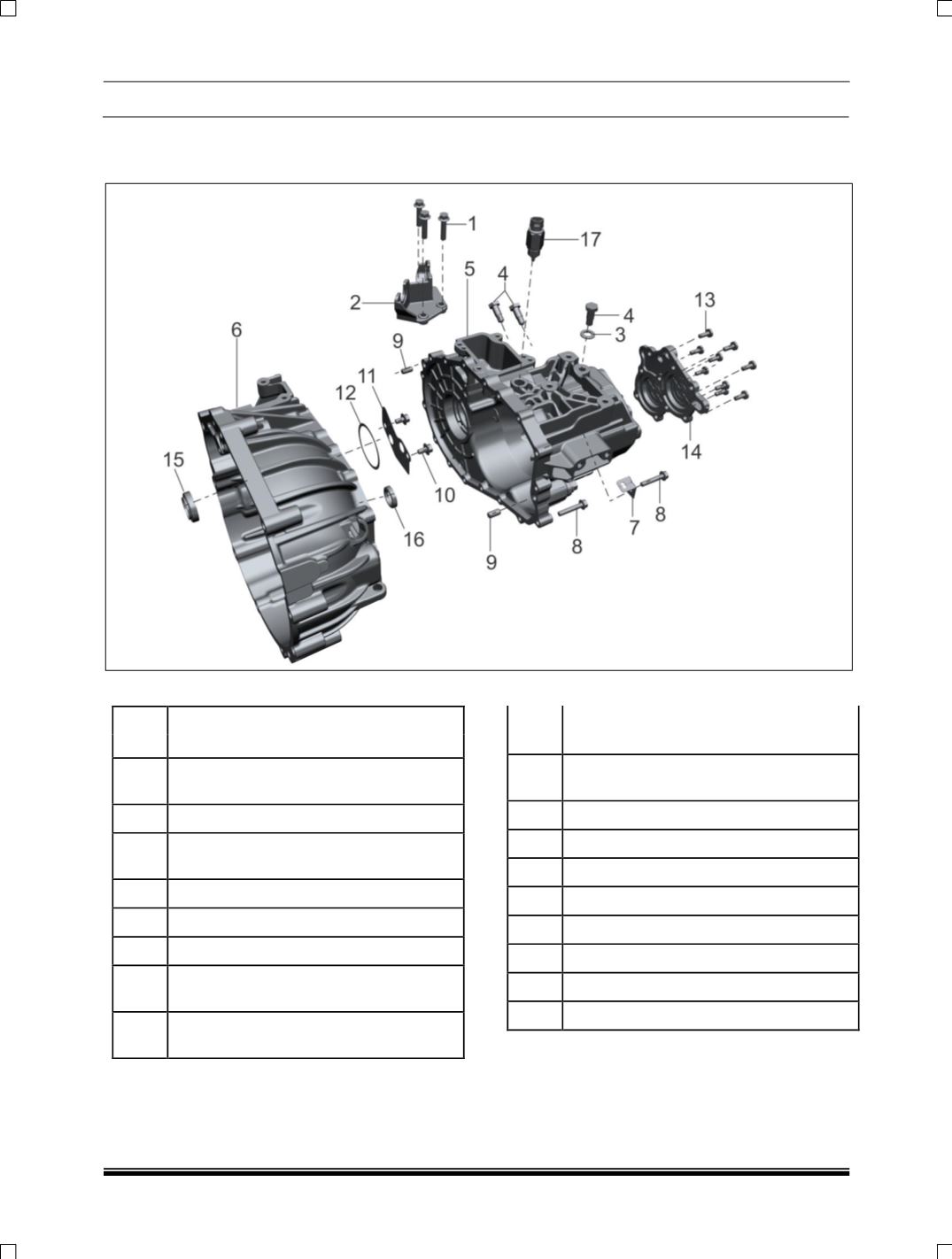

9. EXPLODED VIEWS OF TRANSAXLE:
HOUSING EXPLODED VIEW
SR.
NO.
DESCRIPTION
1
HEX FL BOLT M8X35 TS17070-8.8-
SS8451S2-Y
2
BRACKET (CABLE ANCHORING)
3
BRIGHT WASHER 13 IS2016 ST
SS8451S2-Y
4
DETENT ASSY
5
HOUSING,REAR-HALF
6
HOUSING,FRONT-HALF
7
BRACKET ASSY,ENGINE WIRING
HARNESS MTG
8
HEX FL BOLT M8X45 TS17070 8.8
SS8451S2-Y
SR.
NO.
DESCRIPTION
9
CYLINDRICAL PIN (HSG.FRT HALF
TO HSG.REAR HALF)
10
HEX FL BOLT M8 x 14
11
PLATE
12
SHIM (DIFFERENTIAL BRG.)
13
SOCKET HEAD CAP SCREW M8 X 22
14
REAR COVER
15
OIL SEAL (DRIVE SHAFT)
16
OIL SEAL (INPUT SHAFT)
17
REVERSE LIGHT SWITCH
