ELECTRICAL
39

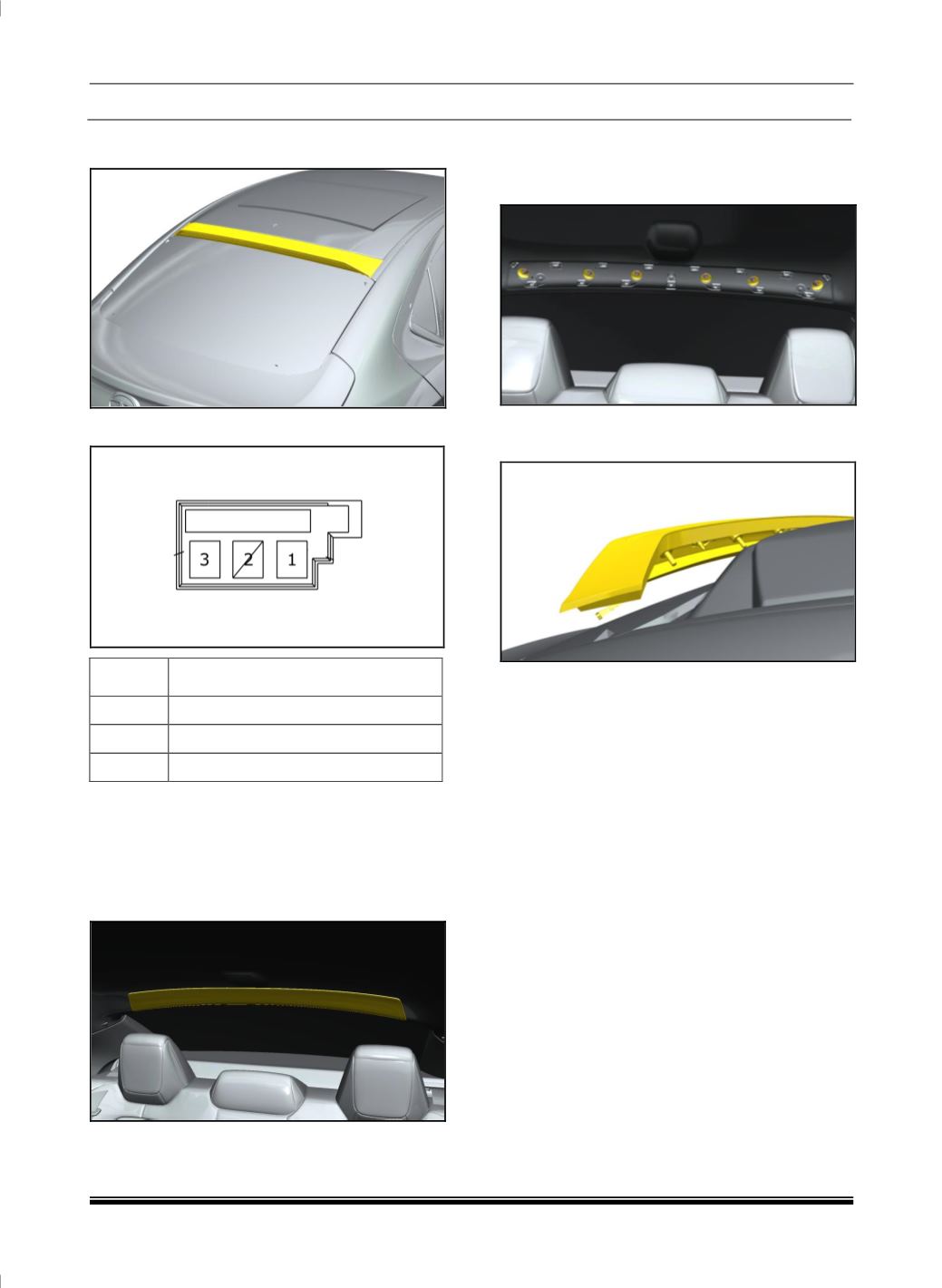

4.6 HIGH MOUNTED STOP LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
Earth
2
Dummy
3
Main
REMOVAL AND RIFITMENT OF HIGH
MOUNTED STOP LAMP
REMOVAL
1. Open the tail gate.
2. Pull out the tail gate trims.
3. Remove the mounting nut and then remove
the high mounted stop lamp by tilting it from
outside the vehicle
4. Disconnect the electrical connection and
remove the lamp.
5. Remove the bulb if required, bulb type 5nos.
REFITMENT
1. Reconnect the stop lamp connector.
2. Align & press fit high mounted stop lamp on
the spoiler.
3. Refit the rubber cap on the back panel hole.
