FRONT & REAR BUMPER
5

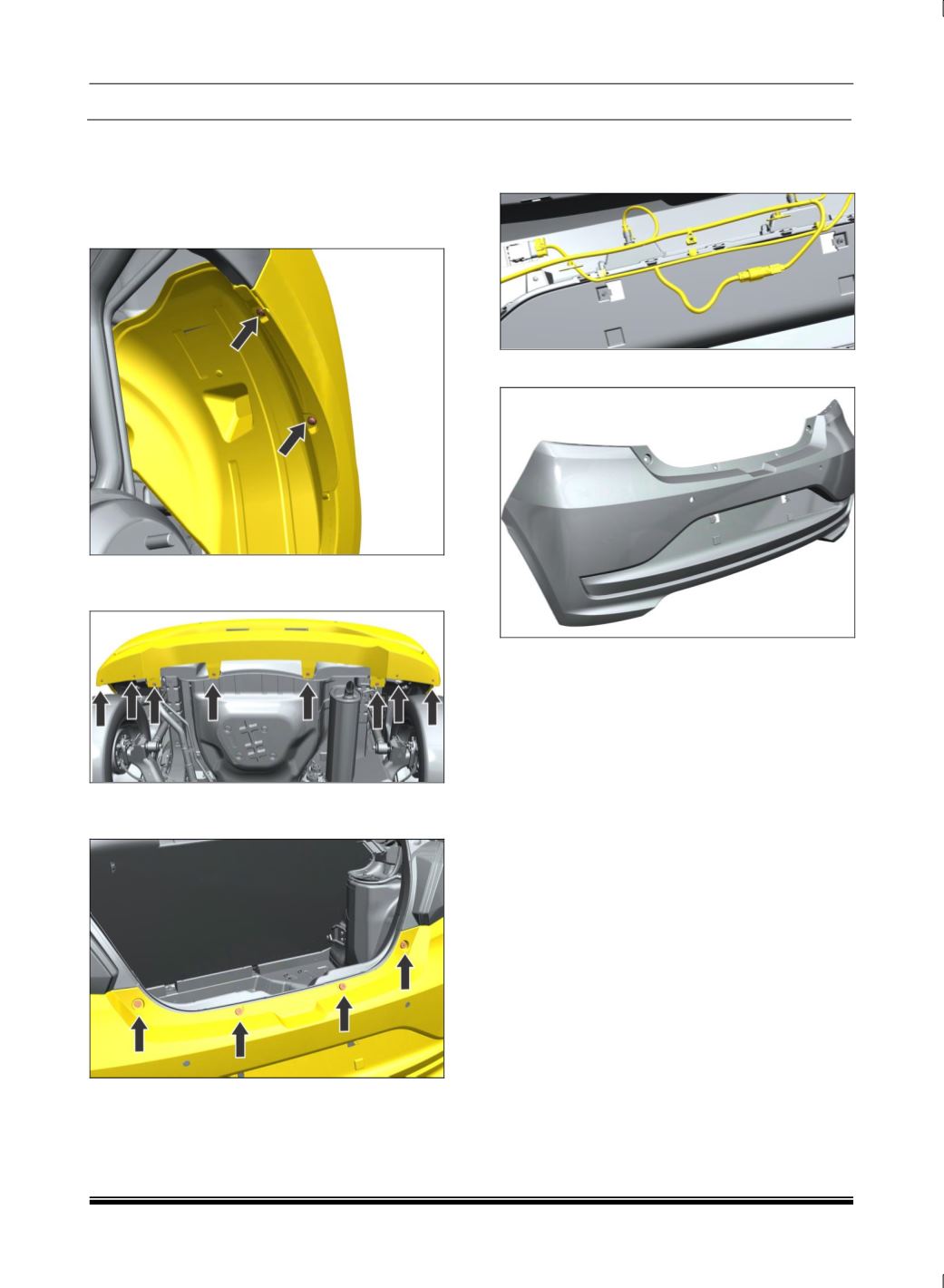

D. REAR BUMPER REMOVAL (TIAGO)
1. Open tail gate and remove body side door
bidding.
2. Remove FL TAP SCR C-ST4.8X22 on rear
wheel arc cladding and take out cladding.
3. Remove all screws Rear Bumper Assembly &
take out rear bumper Assembly.
4. Remove M8 X 16 SPECIAL SCREW on Rear
Bumper.
5. Pry out Rear Bumper from vehicle by
disconnecting electrical connection for
reverse parking sensors and lamp.
6. Separate Rear Bumper from Vehicle.
REAR BUMPER ASSEMBLY
Follow the reverse procedure of Rear Bumper
Remove
