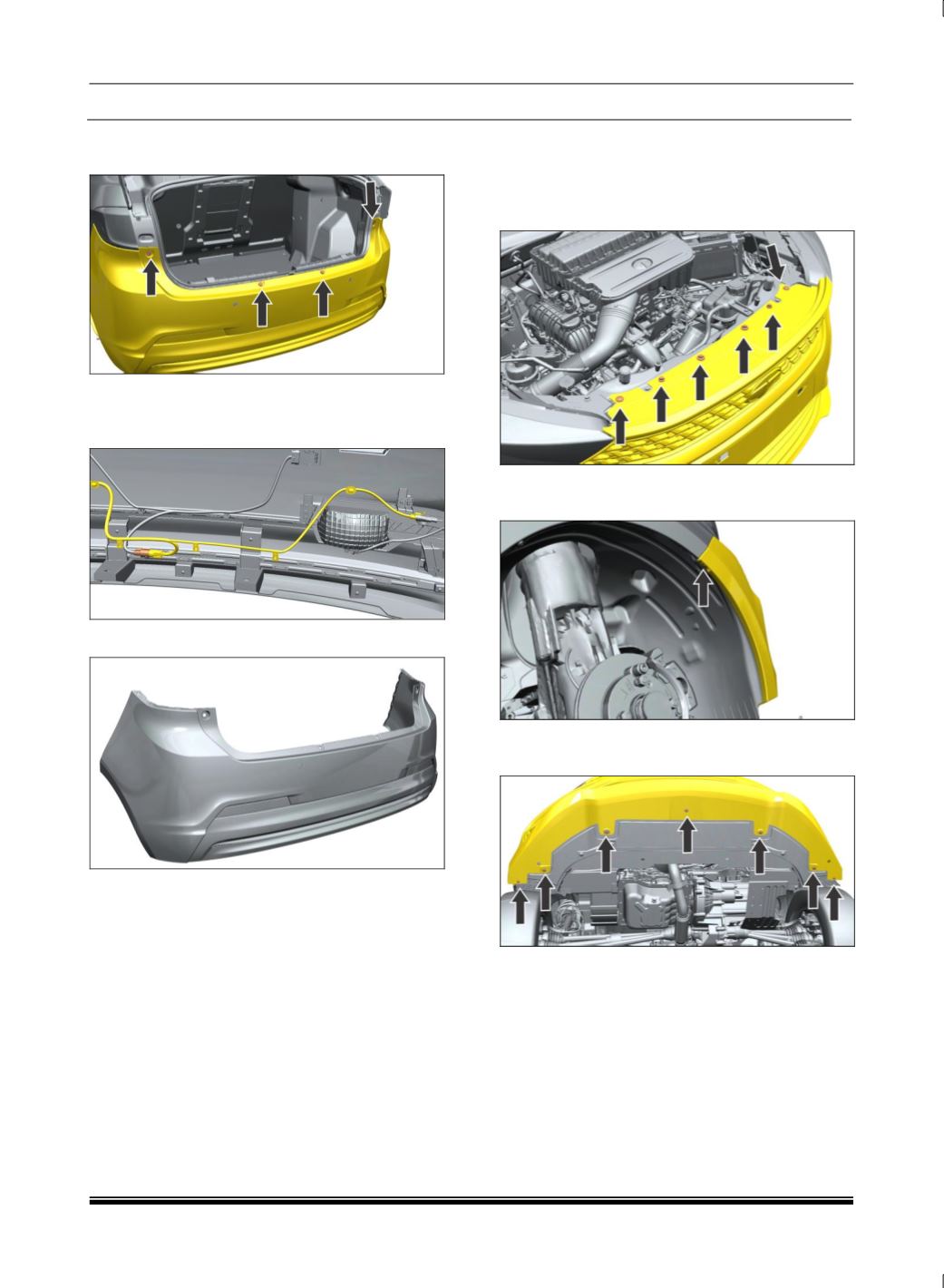

FRONT & REAR BUMPER

3

4. Remove M8 X 16 SPECIAL SCREW on Rear

Bumper.

5. Pry out Rear Bumper from vehicle by

disconnecting electrical connection for

reverse parking sensors and lamp.

6. Separate Rear Bumper from Vehicle.

REAR BUMPER ASSEMBLY

Follow the reverse procedure of Rear Bumper

Removal

C. FRONT BUMPER REMOVAL (TIAGO)

1. Open the bonnet.

2. Remove H/FL BOLT and clip button on Front

Bumper.

3. Remove screw on Front Bumper from LH and

RH side.

4. Remove BOLT and screw from bottom side of

Bumper.
