GEARBOX
6

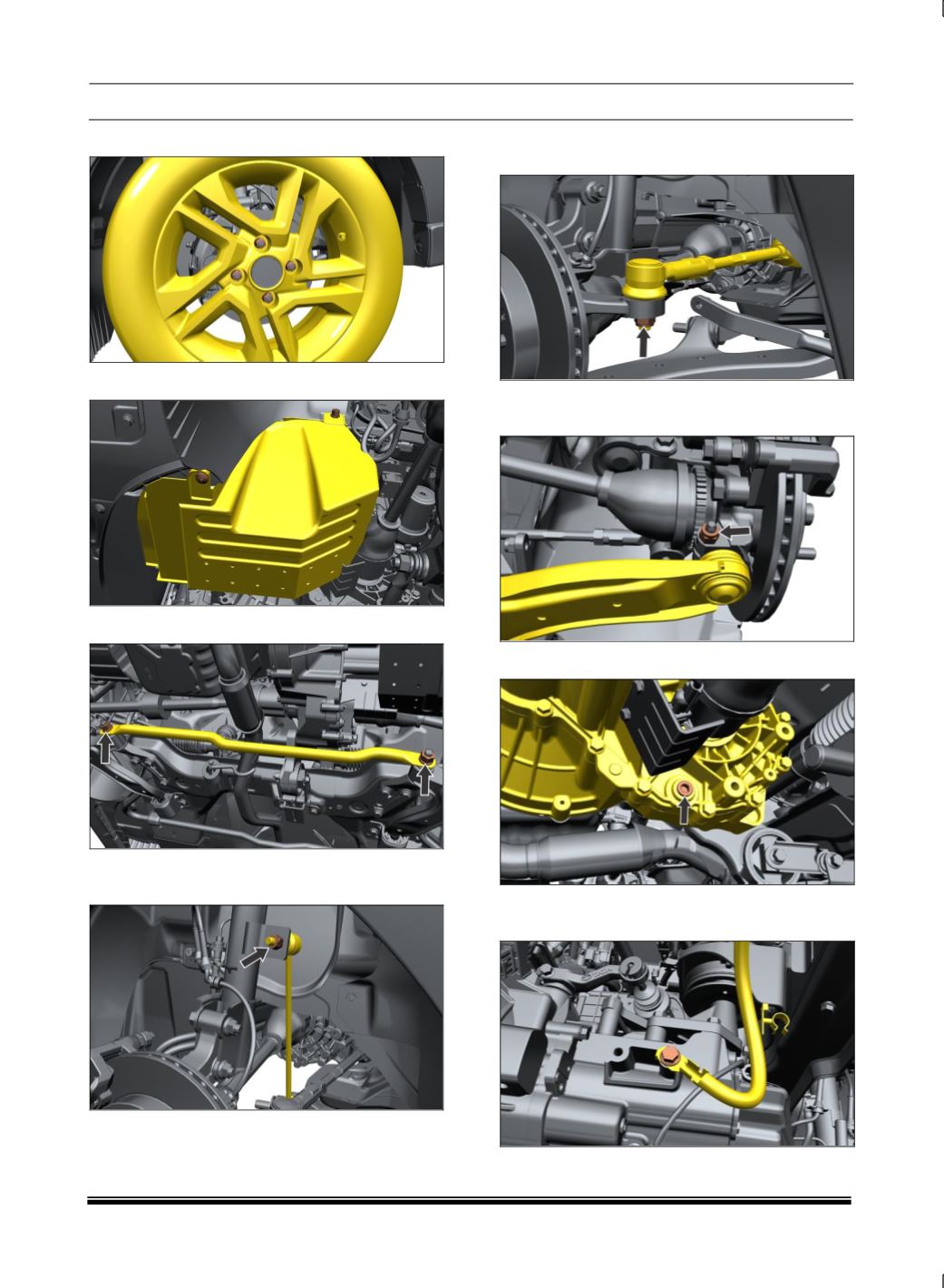

10. Remove Front Tyres.
11. Remove Front Mud Liner on LH side.
12. Remove Tie Rod.
13. Remove Suspension Mtg. vertical link (antiroll
bar) from Strut on LH & RH side.
14. Remove ball joint (steering rack) from steering
knuckle from RH & LH sides
15. Remove stub axle ball joint Mtg. & Remove
Lower Control Arm (LCA) on LH & RH side.
16. Drain the Transaxle oil from Drain plug
17. Disconnect Transmission earthing cable from
Gear Box.
