ELECTRICAL
85

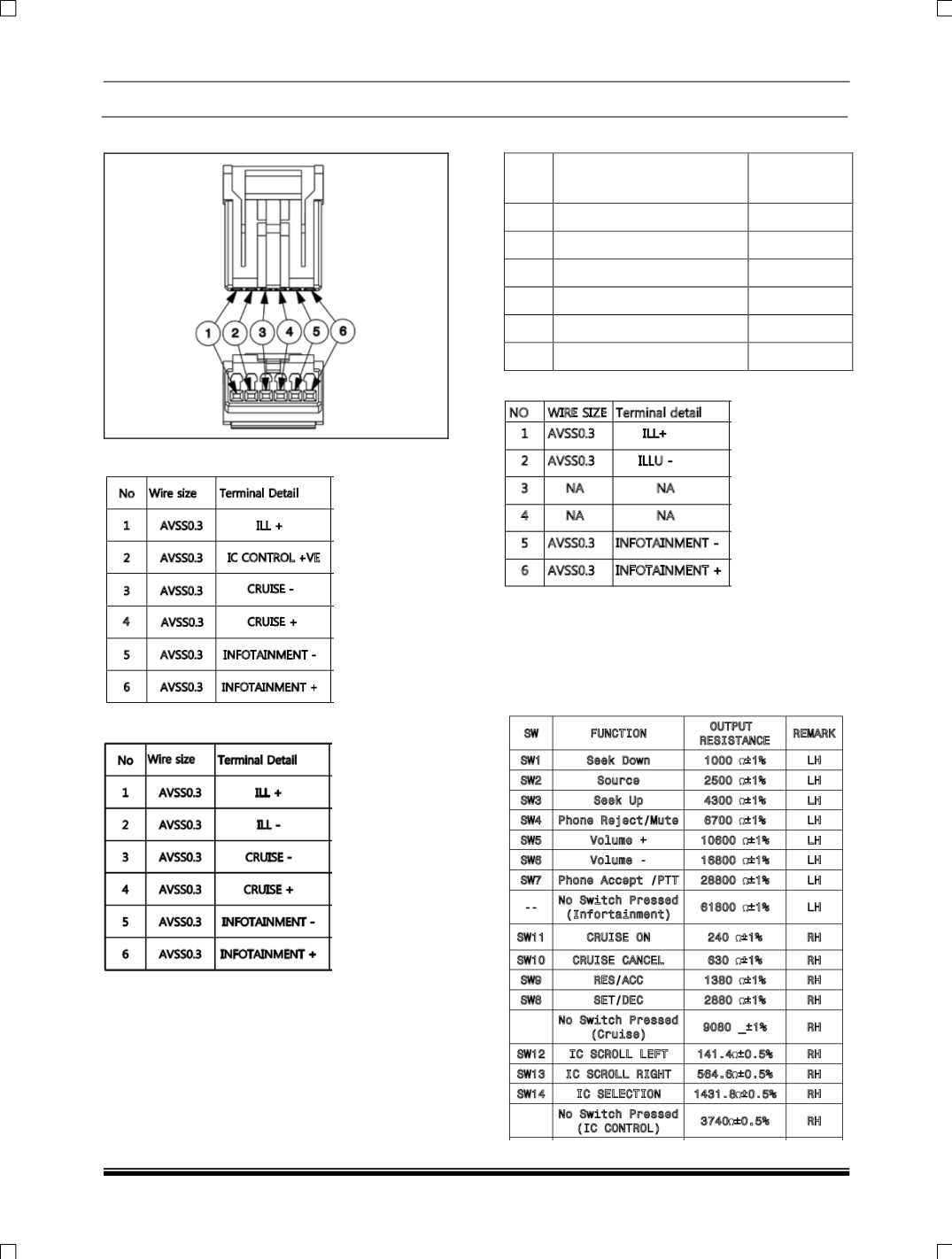

Main connector
For Info + Cruise + IC control
For Info + Cruise
Infotainment + IC Control
PIN
NO.
CONNECTION DETAILS WIRE SIZE
1
ILLUMINATION +VE
AVSS 0.3
2
ILLUMINATION -VE
AVSS 0.3
3
IC CONTROL -VE
AVSS 0.3
4
IC CONTROL +VE
AVSS 0.3
5
INFOTAINMENT +VE
AVSS 0.3
6
INFOTAINMENT -VE
AVSS 0.3
For Info
FUNCTION:
Steering wheel switches is use to control the
music system, Cruise control & instrumentation
cluster controls operations.
For details ref below table
