ELECTRICAL
89
26. INSTRUMENT CLUSTER
FEATURES
Dynamic and monitoring information (e.g. fuel level) to which the driver should respond, is indicated in the
instrument cluster.
The Instrument Cluster has following features:
•
Analogue Gauge : Speedometer, Tachometer and Fuel gauge
•
Bar graph: Engine coolant Temperature (as a part of LCD display), Fuel gauge
•
LCD Display : Clock, Odometer & Trip meter (A & B)
•
Tell tales
•
Mode & Set switches
•

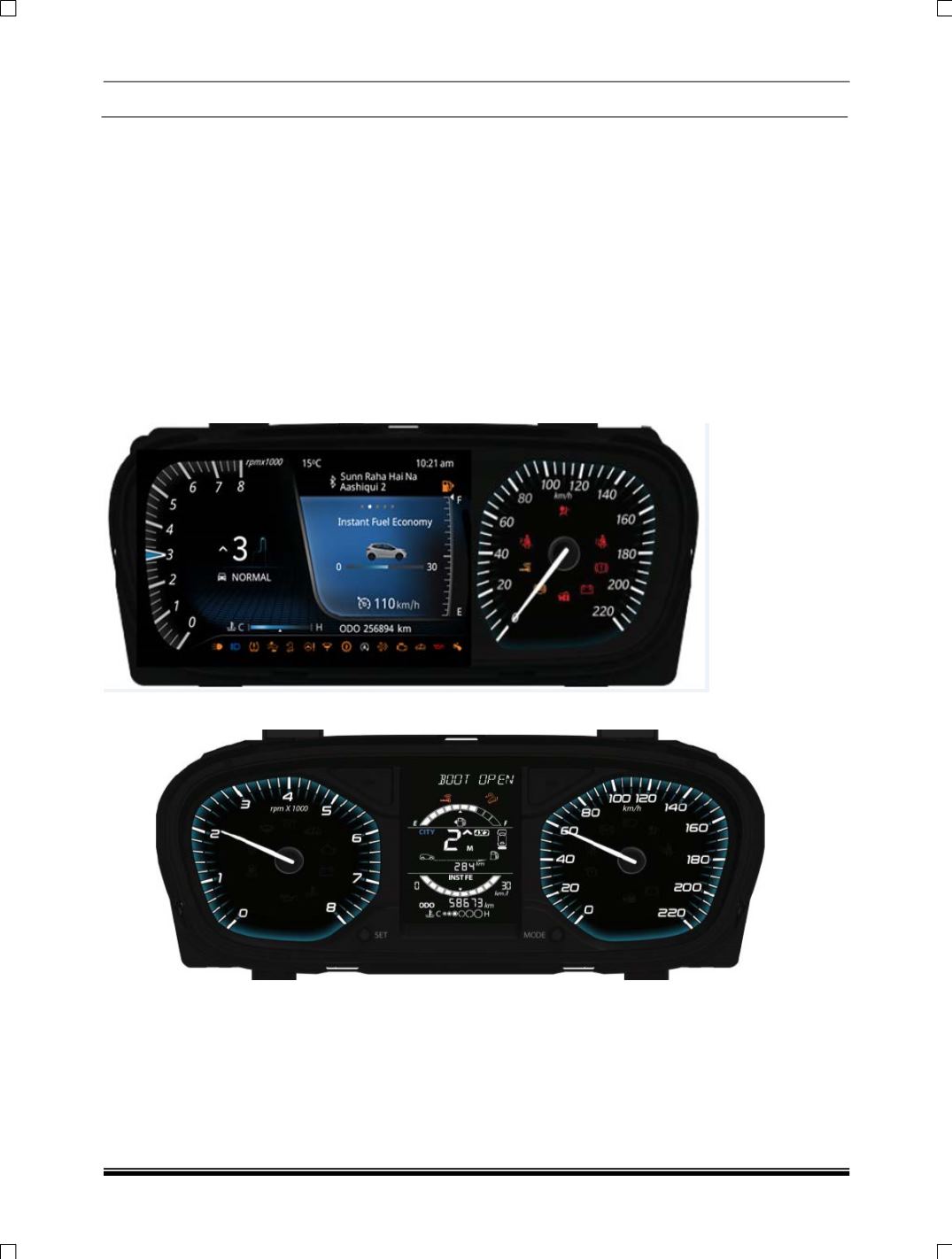

High End Instrument Cluster
•
Low End Instrument Cluster
