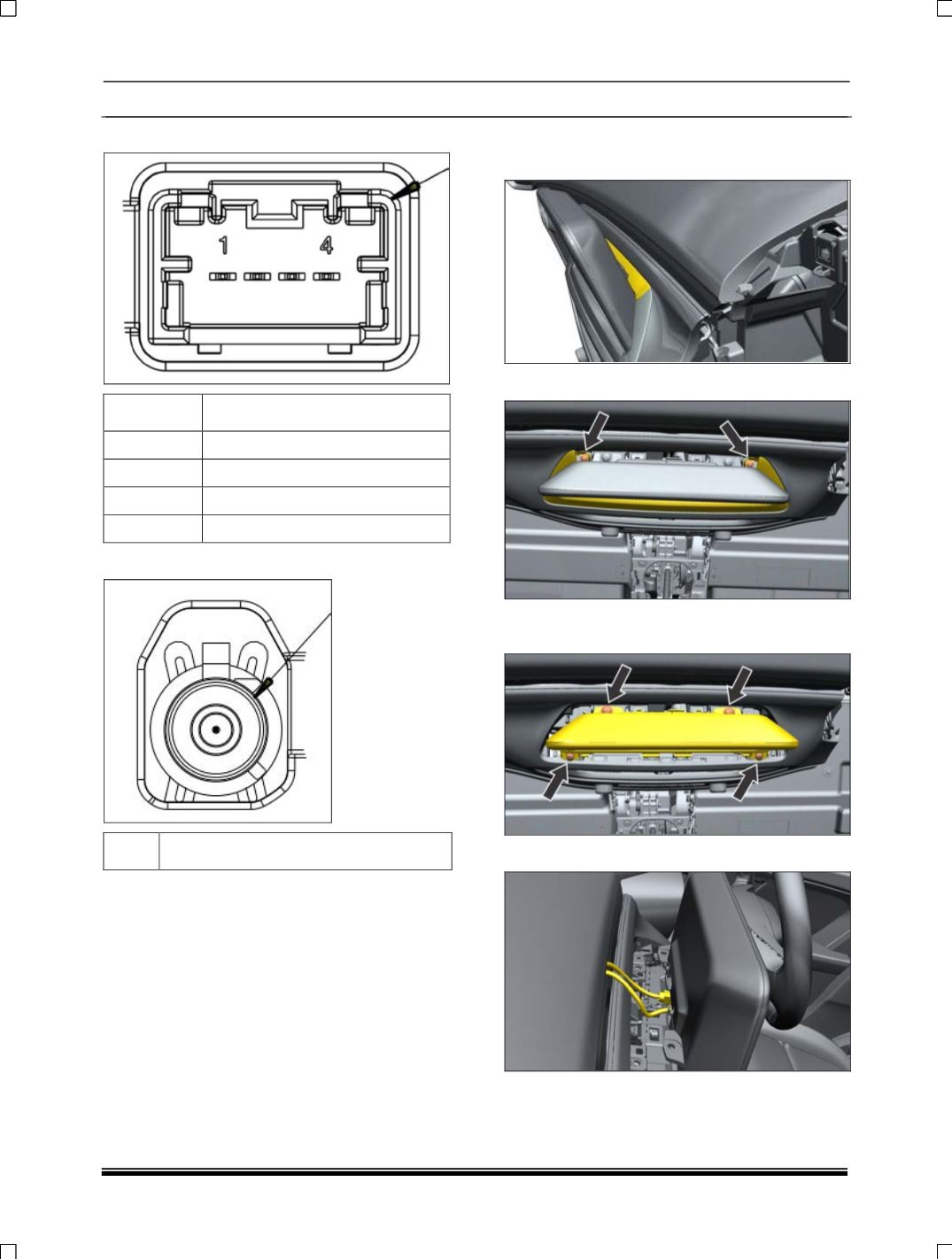

4- Pol Connector details:
PIN
DESCRIPTION
1
Disp batt
2
Hard wired wakeup 2
3
NC
4
Disp Gnd
LVDS Connector
1
LVDS Connector
SPECIFICATIONS:
•
Operating voltage: 9-16V
•
Test voltage: 13.5V
•
Operating current: 1.5A
•
Maximum current: 5A
•
Operating temperature: -30ºC - 70ºC
•
Storage temperature: -40ºC - 90ºC
•
Leakage current: 0.1mA
REMOVAL
1. Carefully pry out cover assembly.
2. Remove mounting screw of Display cover.
3. Remove the mounting screw of Display and
disconnect the electrical connection.
4. Disscoonect the electricle connection.
REFITMENT
For refitment, follow the procedure in reverse.
