BODY
34

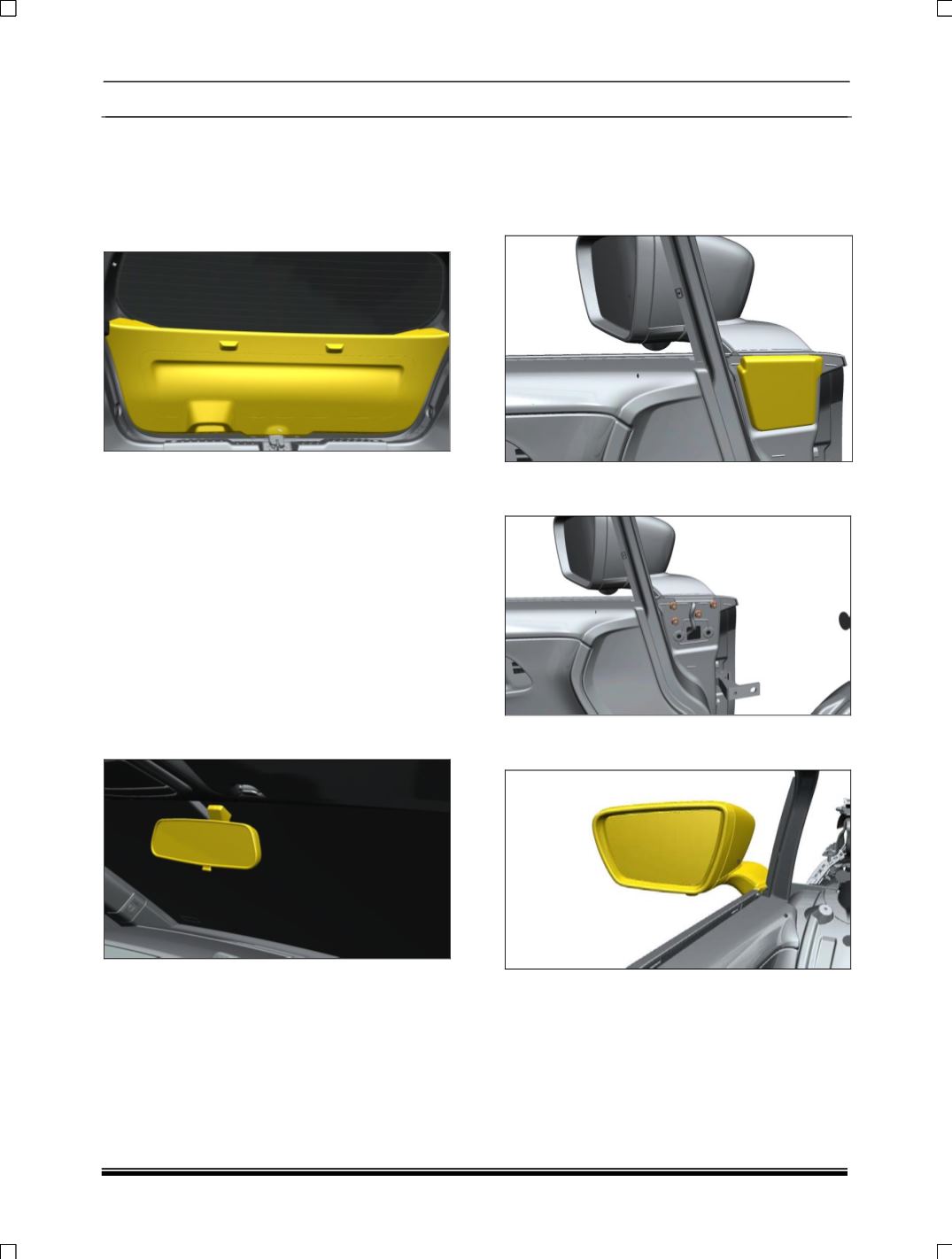

E. TAIL GATE TRIM
REMOVAL
1. Open the tail gate.
2. Pull out tailgate trim by plastic wedge / fingers
and pull out trim gently.
NOTE
While pulling out the tail gate trim, care should be
taken such that tree clips do not get damage.
Below image gives location of tree clips on tail
gate trim.
FITMENT
1. Match Tailgate trim buttons properly with the
hole.
2. Press trims gently, ensure its proper fitment.
2.21 INNER REAR VIEW MIRROR
REMOVAL
1. Push the mirror in the upward direction along
with the windshield to remove the same.
FITMENT
For fitment follow reverse procedure of removal.
2.22 ORVM
REMOVAL
1. Open the door.
2. Pull out the inner cover ORVM.
3. Loosen and remove 4 mounting nut.
Disconnect electrical connection.
4. Remove the ORVM assembly from the door
shell.
FITMENT
For fitment follow the reverse procedure of
removal.
