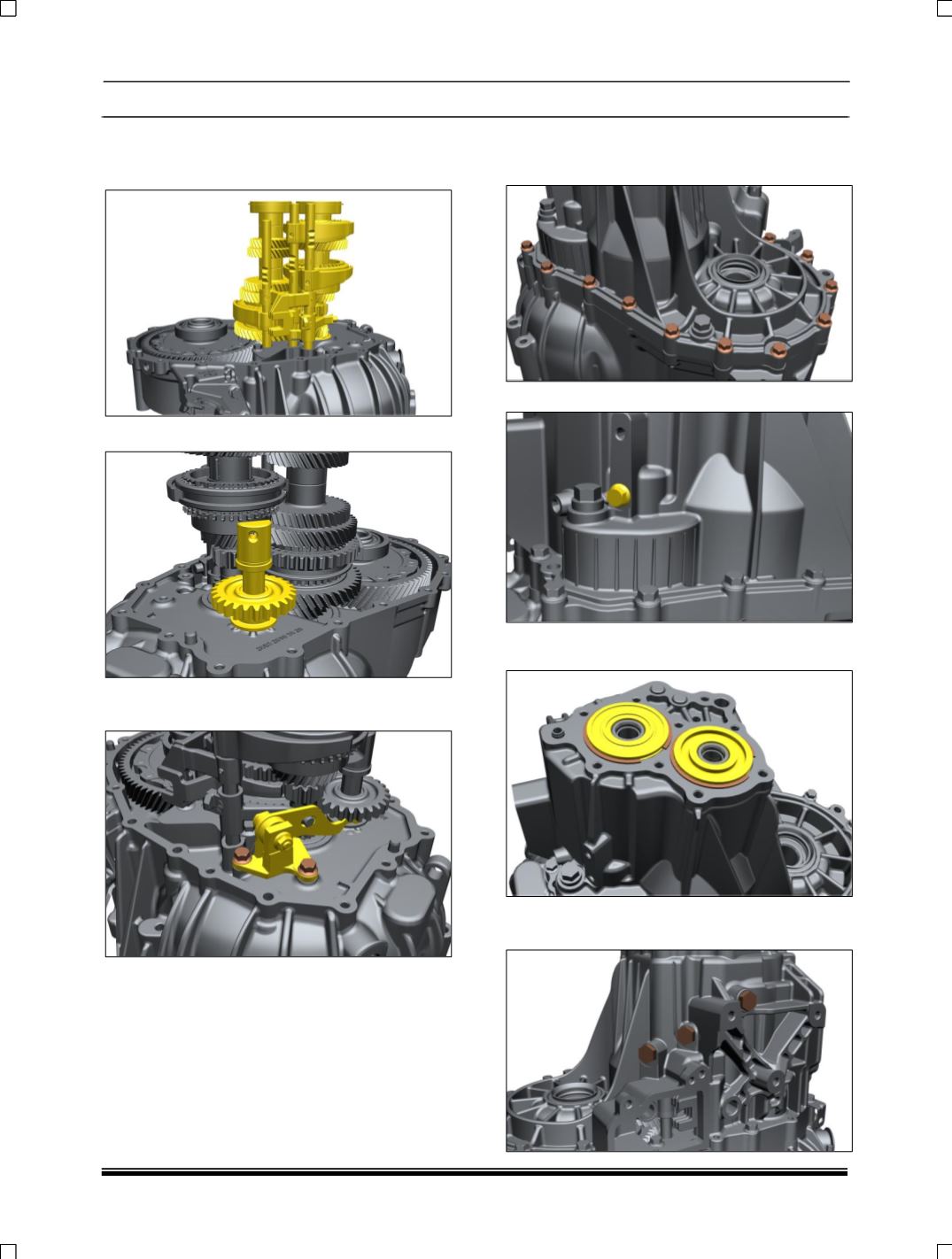

11. Place the lay shaft assembly and input shaft
assembly together along with shifter shaft
assembly.
12. Place Reverse Idler Gear Assembly.
13. Tighten two hex screw & Fix the reverse lever
bracket Assy.
14. Apply liquid gasket (Anabond 90 or 3 bond
12S00) with proper bead size on front half /
rear half interface.
NOTE:
Clean the front half and rear half interfaces/ so that
no cured and dried liquid gasket remained are left
on the machined surfaces.
15. Fix the housing (rear half) and tighten the 14
outside flanged mounting bolts (M8x45) to
specified torque.
16. Fix Reverse Idler Bolt M8x25.
17. Fix Snap Ring on Input shaft & Lay shaft
Assembly.
18. Fix Detent Assembly on Shifter shafts.
