1.2L REVOTRON ENGINE
122

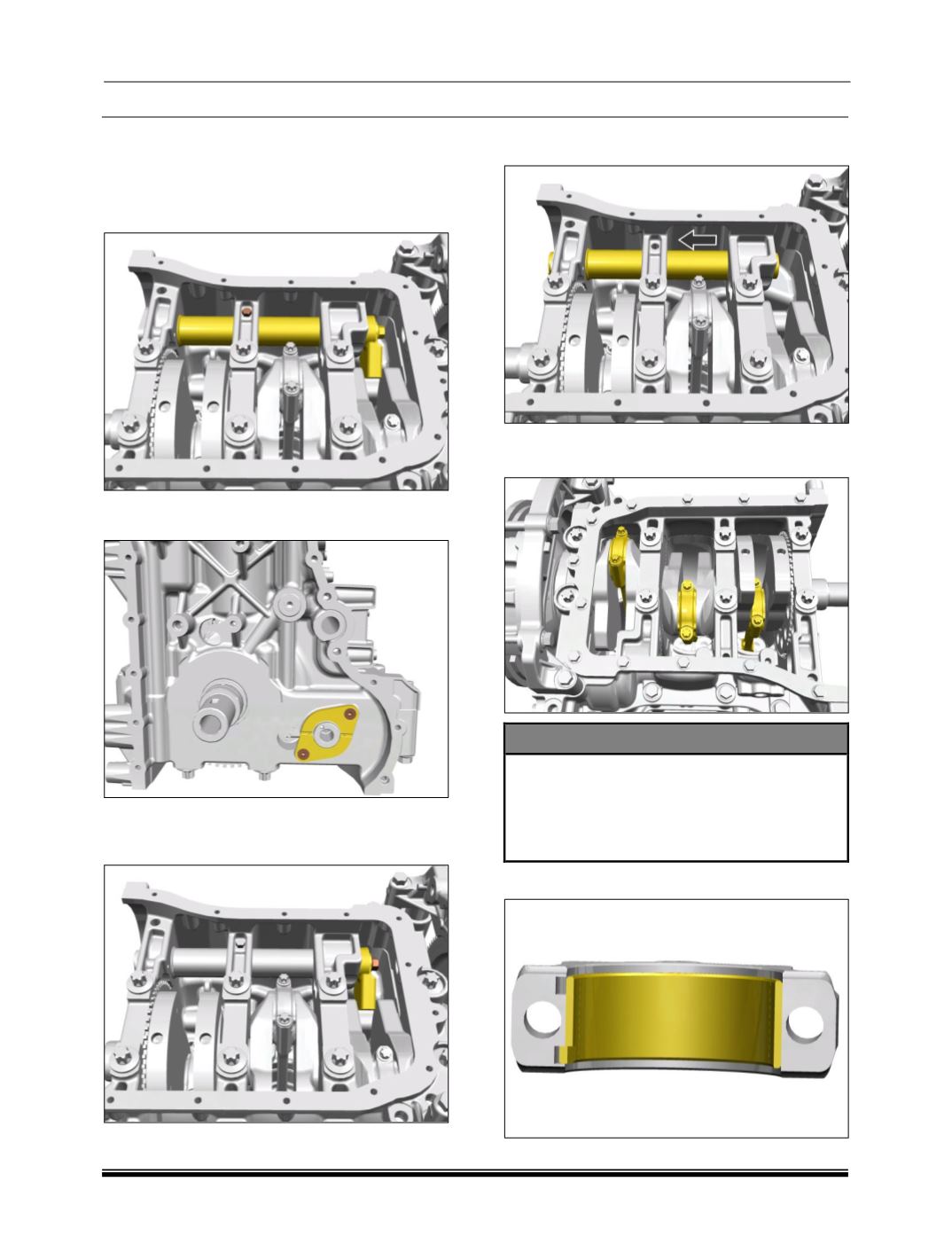

IX. Removal of Cylinder Block Sub-
Assemblies
1. Lock the balancer shaft in the bedplate using
a locking bolt
(5715 0310 9904)
as shown
below.
2. Remove the two mounting counter sunk
screw and take out the thrust washer.
3. Remove the Balancer Mass with locating pin
in balancer shaft by removing the mounting
bolt.
4. Remove the locking bolt and take out the
balancer shaft from the bedplate as indicated.
5. Remove the mounting nuts holding the
connecting rod bearing caps.
NOTE
While removing each bearing shell, mark
on its back in case of reuse.
Connecting rods have to be assembled to
the respective bearing caps, matching with
serial numbers
6. Remove the bearing shell from bearing cap.
