C635 TRANSAXLE
32

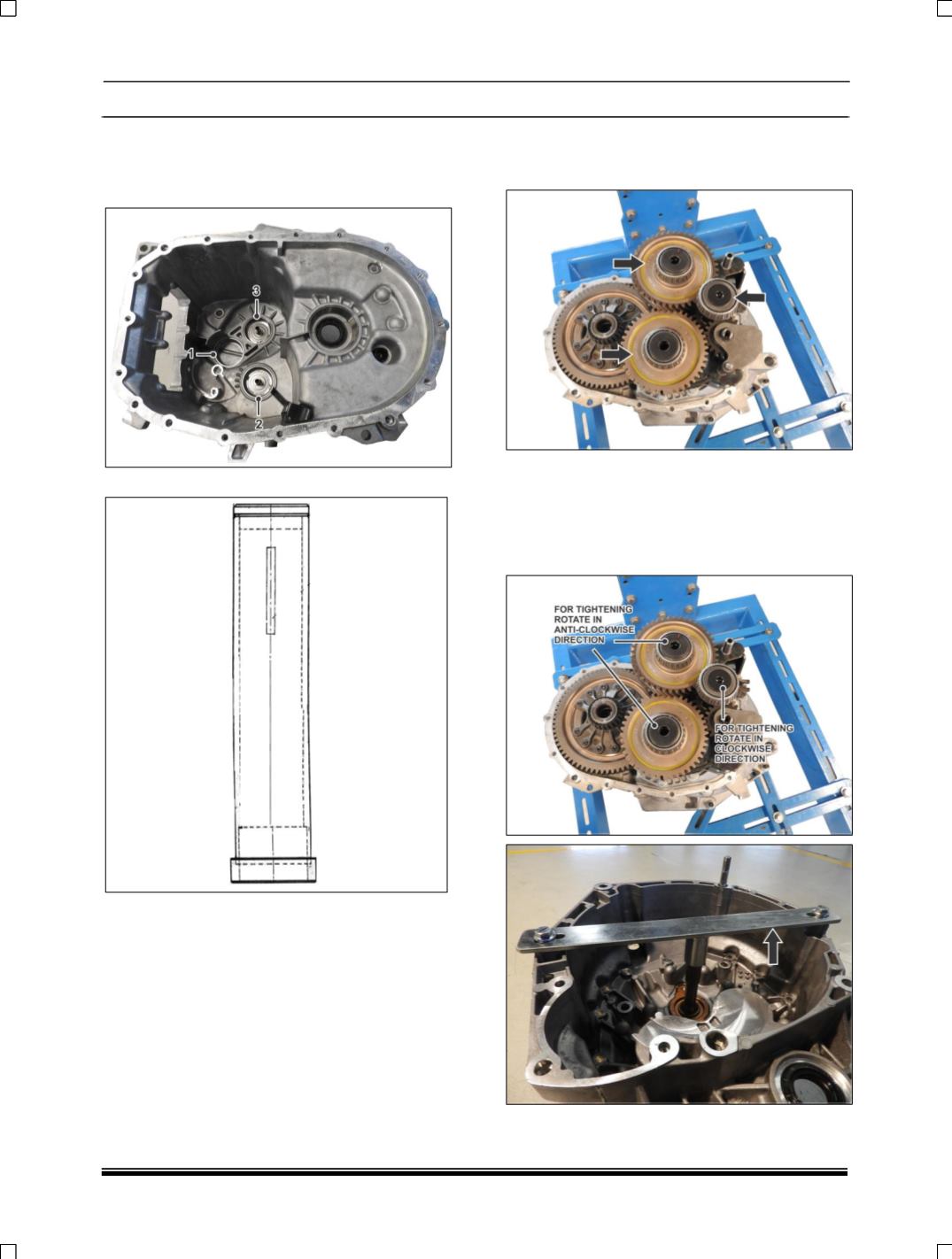

11.Install Input and output shaft the bearing races
to the case using Installer and Drift
(NOTE: Input and output shaft bearing races as
shown having same Diameter)
BEARING ASSEMBLY DRIFT 2751 5890 2622
12.Install the gear shaft oil ducts. Using an
appropriate drift re-stake the ducts to the case.
13.Install the input shaft bearing race using and.
14.Install the gear side differential bearing race
using and.
15.Install the output and main shafts as a group.
16.Tighten gear shaft rear bearing retention bolt by
interlocking shafts using input shaft Lock Plate.
a. Tighten output shaft bearing retention bolt by
rotating in Anti-clockwise direction
b. Tighten Input shaft bearing retention bolt by
rotating in clockwise direction
