C635 TRANSAXLE
28

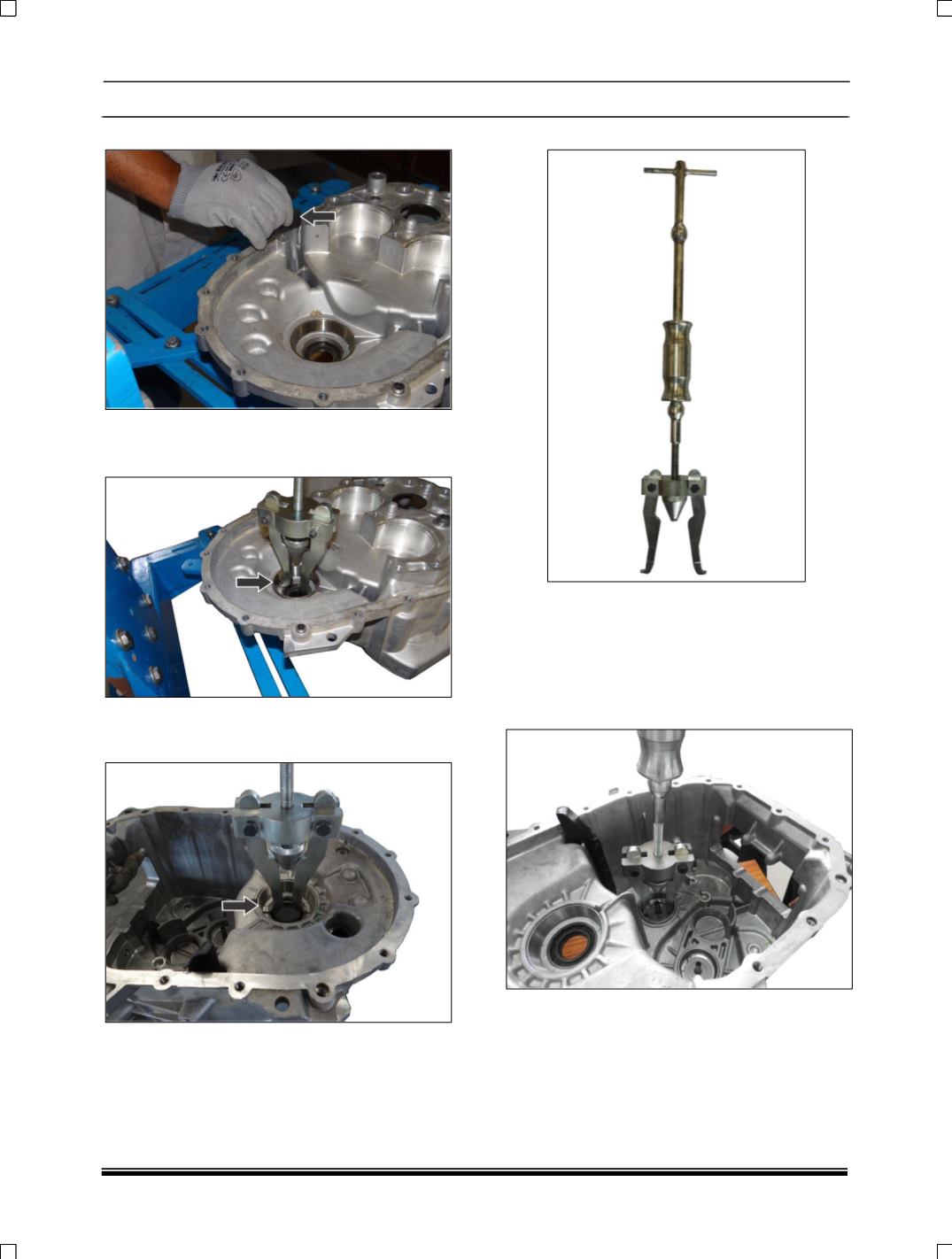

26.Remove the magnet.
27.Remove the clutch housing side differential
bearing race using bearing outer race remover
5438 5890 2603.
28.Remove the case side differential bearing outer
race and shims using 5438 5890 2603 (two leg)
puller.
Bearing Outer race remover 5438 5890 2603
NOTE:
Document the location of each shim as they will be
utilized as the starting point for the bearing preload
adjustment process.
29.Remove the case side gear shaft bearing outer
race and shims using bearing outer race
Remover 5438 5890 2603 (two leg) puller.
