KRYOTEC ENGINE
88

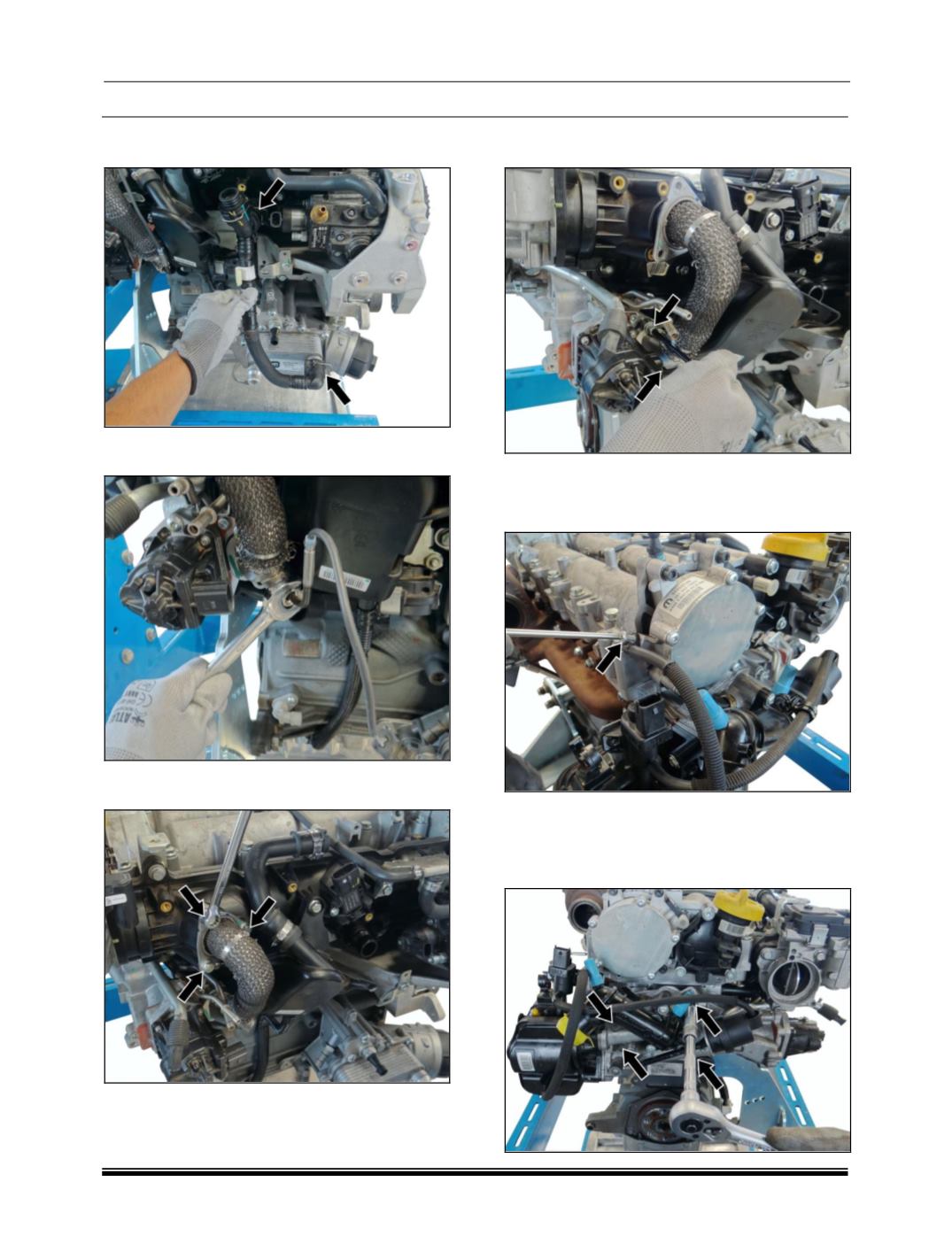

8. Loosen mounting clips and disconnect coolant
return hose to oil cooler.
9. Remove the exhaust gas supply pipe
temperature sensor.
10.Remove the exhaust gas supply pipe at intake
manifold end.
NOTE
Gasket not to be reused.
11.Remove the exhaust gas supply pipe at EGR
end.
NOTE
Gasket not to be reused.
12.Remove EVRV hose to vacuum pump.
NOTE
O-ring not to be reused.
13.Remove mounting fasteners and take out EGR
cooler.
