101 / 948
KRYOTEC ENGINE
92

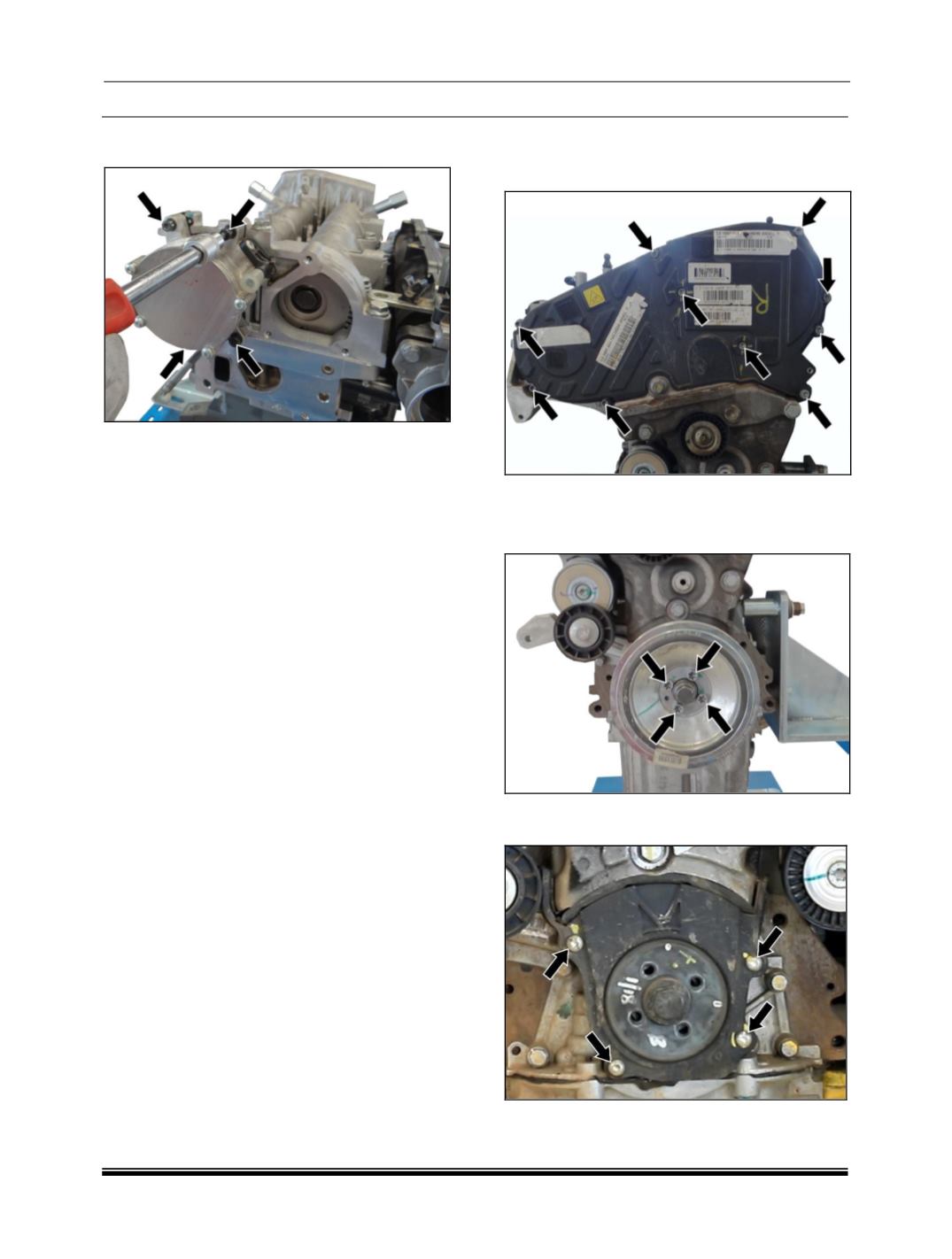

10. Remove mounting screws and take out the
vacuum pump.
NOTE
Gasket not to be reused.
v. REMOVAL OF TIMING BELT
1. Remove mounting screw and remove upper
timing cover.
NOTE
Fasteners not to be reused.
2. Remove damper pulley.
3. Remove mounting screw of the bottom belt
cover. Take out the bottom belt cover.
