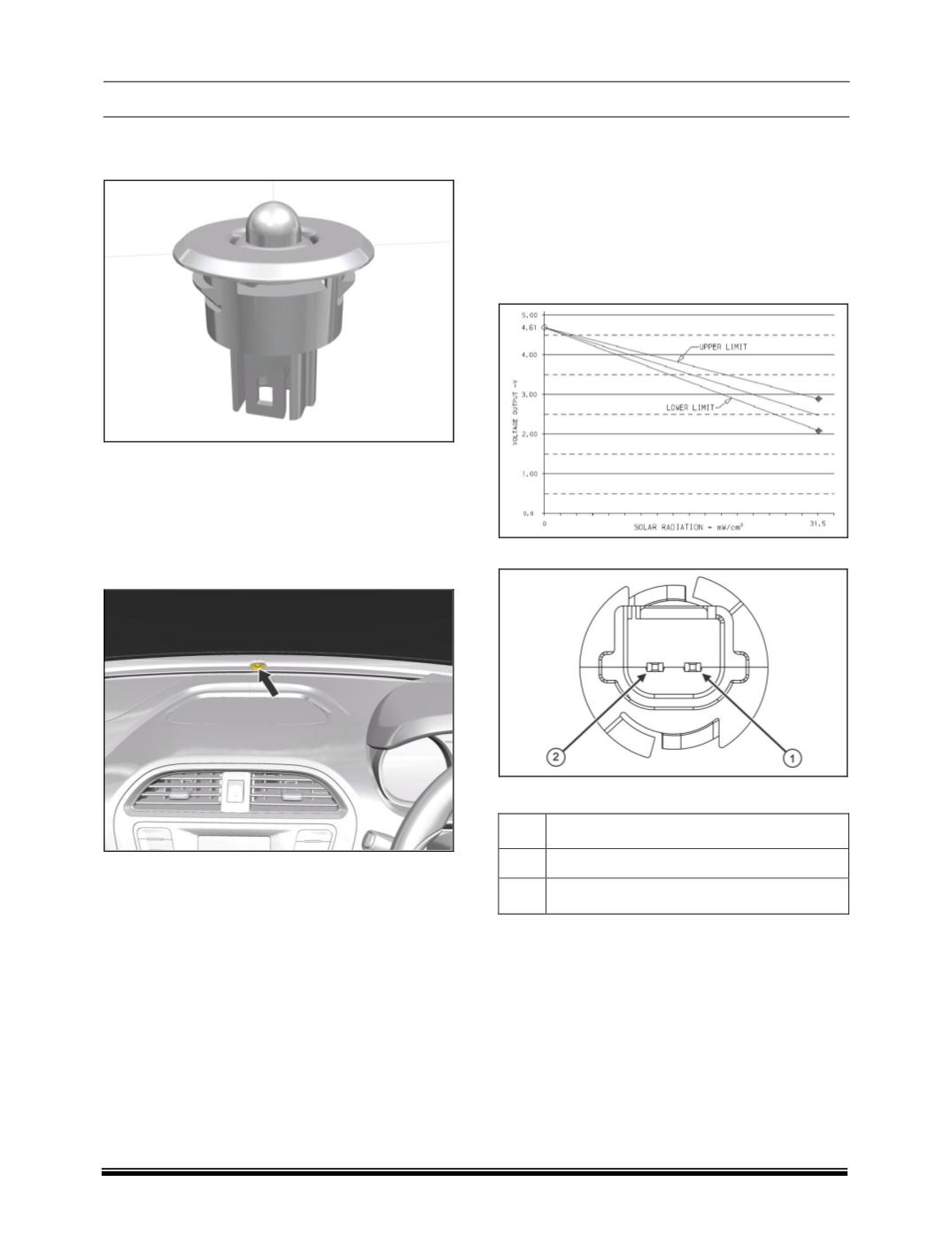

1.6. FATC SENSOR
A. SOLAR LOAD SENSOR
Solar load sensor is a photodiode that measures the
relative solar load. It provides the output current pro-
portional to solar heating.
LOCATION
It is fitted on front defrost grill.
INSPECTION
Fit the solar load sensor into its adaptor. Connect the
electrical connection.
Measure response at different intensity and plot
graph of sensor output and intensity.
The plotted graph should approximately match with
following graph.
C
ONNECTOR DETAILS
PINOUT DETAILS
PIN
DESCRIPTION
1
Solar sensor Input to control panel
2
Analog GND
