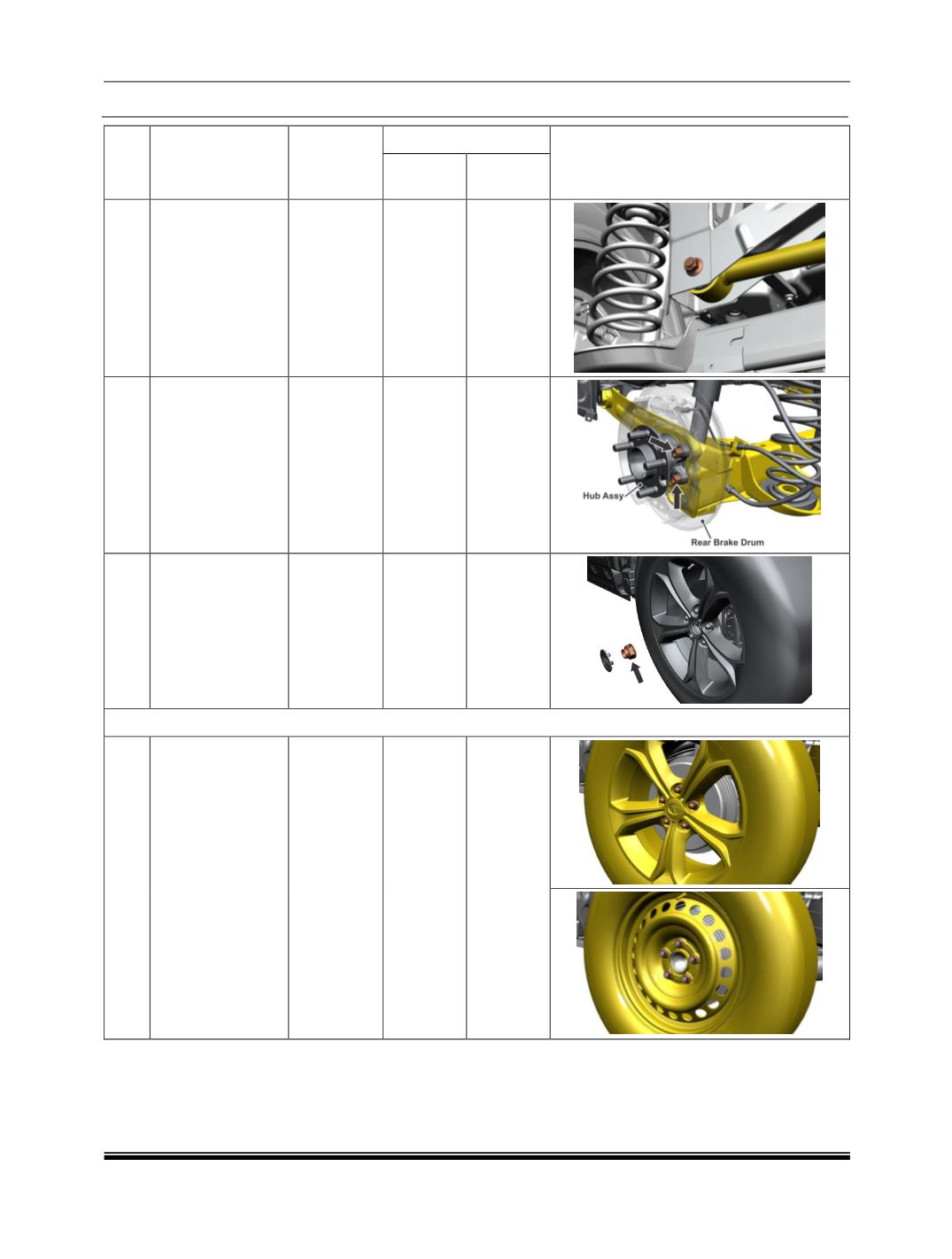

HARRIER BOOK-1

SUSPENSION

SR.

NO.

DESCRIPTION

FASTNER

TYPE

TORQUE (Kg-m)

LOCATION

SUNG

TORQUE

ANGLE

Panhard rod

Assy

BIW

M14X1.25

X105

16.3 ± 0.5

60°±3°

Rear Gen3

bearing (Hub

Assy) to knuckle

M12x1.5x4

13.2

Driveshaft Lock

Nut

M24x2

30 ± 1.5

WHEELS & TYRES

WHEEL

MOUNTING

NUTS

M14x1.5

12-15

NOTE:

Unless otherwise specified, no oil/lubricant/thread locker allowed on fasteners, fastener bearing surface or

surface where the fastener will sit while assembly. All self-locking type fasteners not to be re-used once joint

is dismantled

* Mark bolt are not to be reuse.
