HARRIER BOOK-1

274 / 948

SUSPENSION
7
SR.
NO.
DESCRIPTION
FASTNER
TYPE
TORQUE (Kg-m)
LOCATION
SUNG
TORQUE
ANGLE

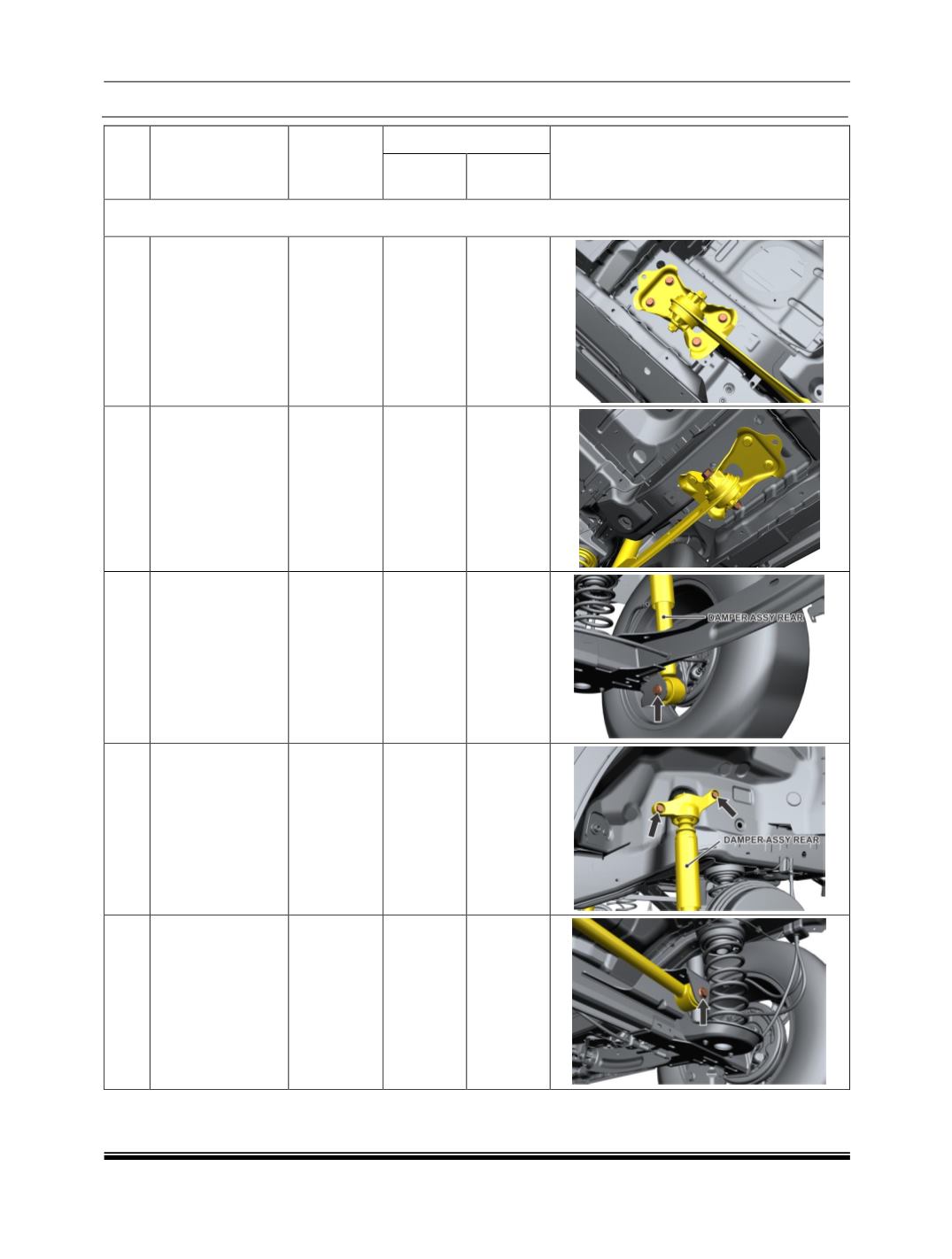

REAR SUSPENSION
1
Front Pivot
bracket mounting
on BIW
M12X1.5X
35
14.27± 0.4 -
2
Front Pivot bush
to Twist Blade
mounting bolt
HEX FLG
BOLT
M16X1.5X
105
FL NUT
AM16X1.5
11.2 ± 0.4 120˚±6°
3
Damper
Assembly
mounting to Twist
Blade
M14X1.25
X105
15.3± 0.5 60°±3°
4
Damper
Assembly
mounting bolts to
BIW
M12X1.5X
35
11± 0.4 -
5
Panhard rod
Assy Twist
Beam
M14X1.25
X105
16.3 ± 0.5 60°±3°
