CLUTCH RELEASE SYSTEM
7

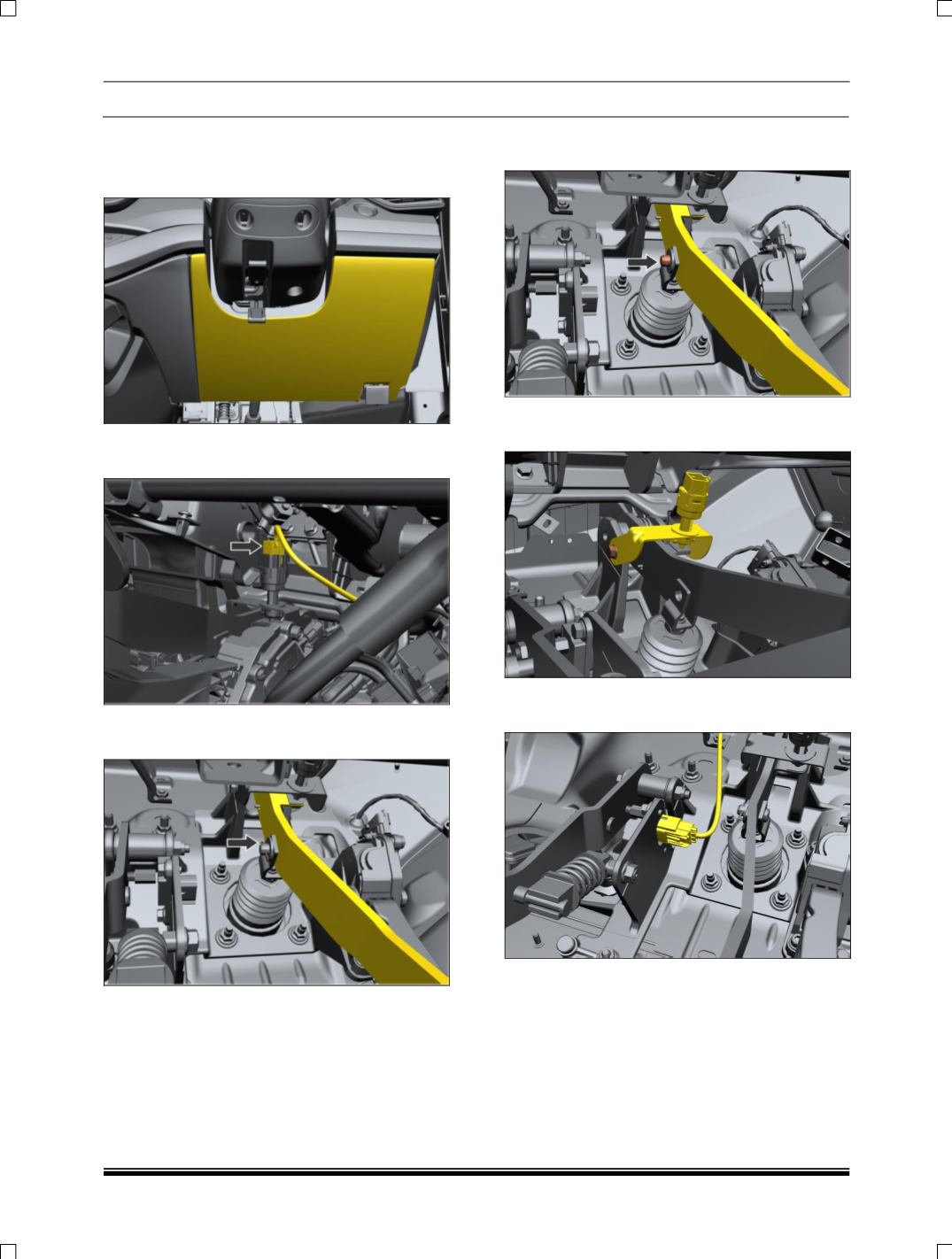

7. REMOVAL
OF
CLUTCH
CONTROL
BRACKET
1. Remove dashboard lower from driver side.
2. Remove Electrical connection from stop light
switch.
3. Remove Split pin to disconnect brake pedal
from brake booster assembly.
4. Remove clevis pin to separate booster
assembly from brake pedal.
5. Remove mountings screw M6 & take out stop
light switch with bracket.
6. Remove
Electrical
connection
from
contactless clutch sensor.
