Crank shaft sensor pin 2.
connections as per
the circuit
schematic.
2
Check whether the air-gap of the sensor and it’s magnet is
as per specification / crank sensor drawing
Rectify the mounting
asper the
specification
Go to next step
3
Check whether the ECM pins A020 or A021 are either short
circuited to Battery / Ground / Open circuited.
Rectify the wiring
harness connections
s per the schematic
Go to Next Step
3
Are there any pins backed out from the Crank shaft sensor
Connector
Rectify/Replace
Connectors
Go to Next Step
4
Are there any pins backed out from the EMS ECU
Connector
Rectify/Replace
Connectors
Go to Next Step
5
Fault Persists.
Call Hotline
Repeat the above
steps for re-
confirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.

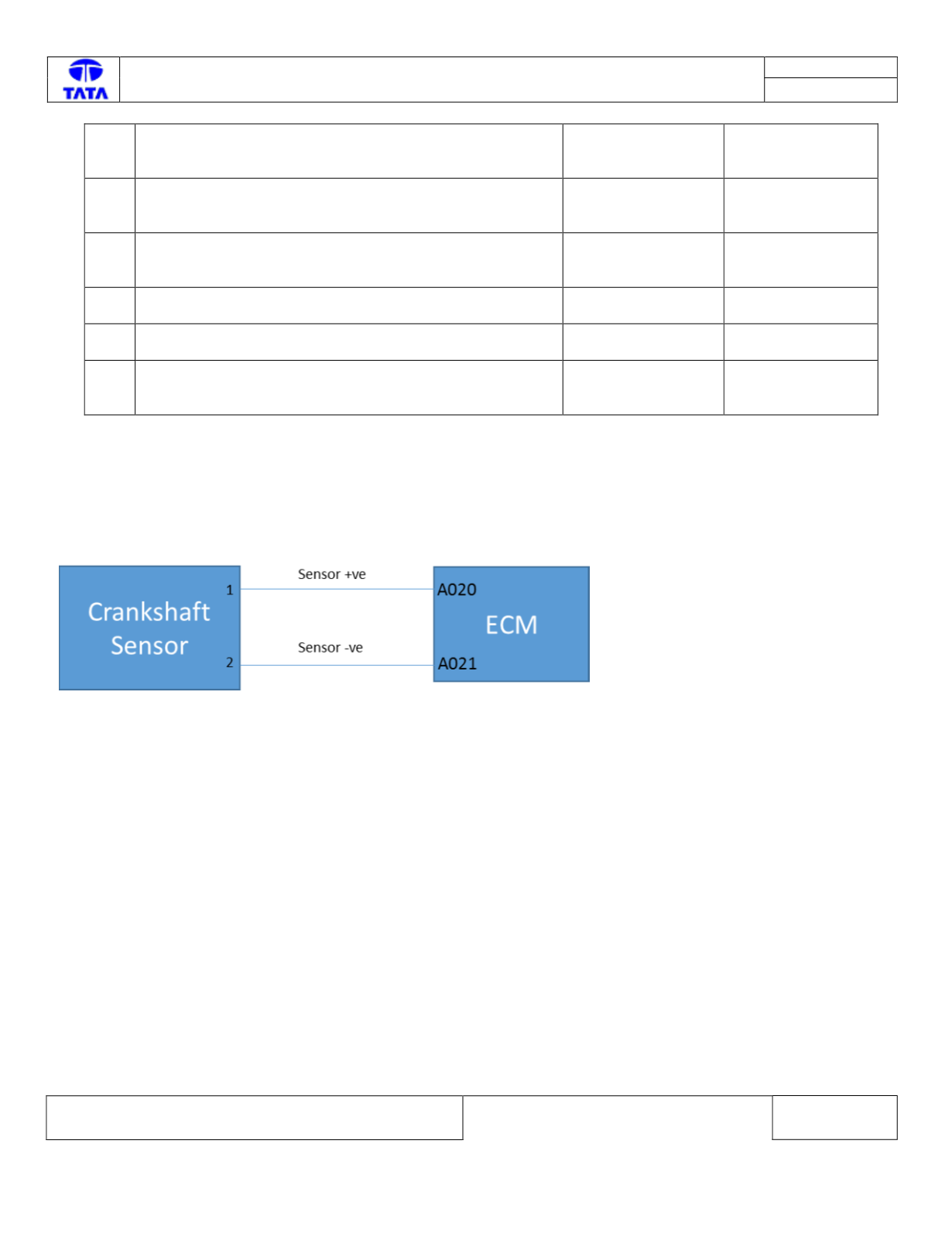

Circuit Schematic:
