as per the circuit
schematic.
4
Are there any pins damaged at EMS ECU Connector
Replace the
connector or wiring
harness
Go to Next Step
5
Are there any pins backed out from the EMS ECU
Connector
Rectify/Replace
Connectors
Go to Next Step
6
Fault Persists.
Call Hotline
Repeat the above
steps for re-
confirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.
Incase the cylinder 1 injector replacement is needed, then perform below actions:
1. Perform IMA classification / Injector learning
2. “Reset Lambda sensor - 4.2.2 ‘Exchange of Injectors, Rail Pressure Sensor and MAF Sensor’ (LSU1 $ 02 05 XX)
– Sub-function 02“.
3. “DPF injector reset (DPF5) – ‘Set EEPROM values for PFFlt_MassCalc Exchange of an emission relevant engine
component’”

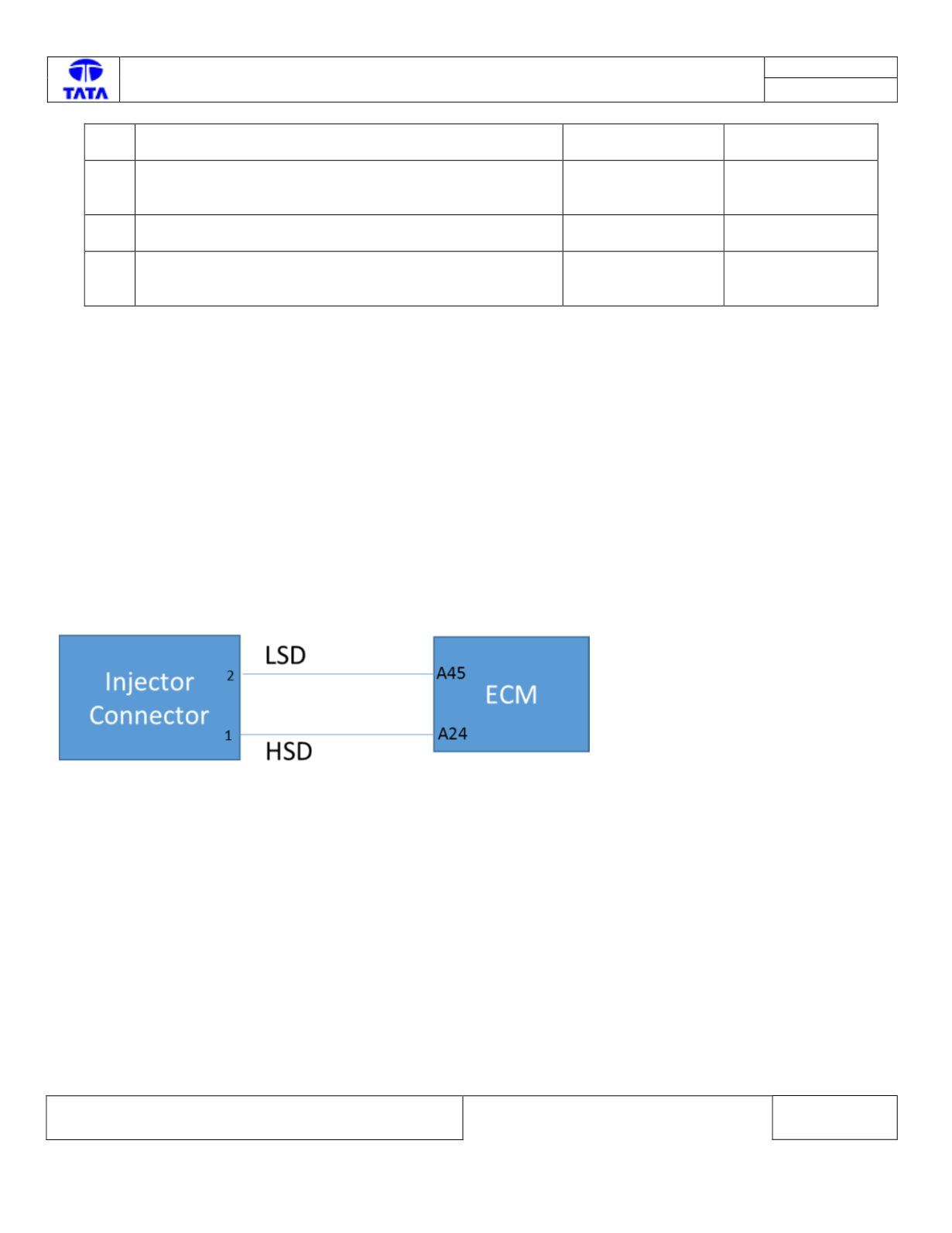

Circuit Schematic:
