connector or wiring
harness
4
Are there any pins backed out from the EMS ECU
Connector
Rectify/Replace
Connectors
Go to Next Step
5
Measure the Valve Coil Inductance value and check
whether it is above than 120 mH at 100 HZ.
Replace Valve
Go to Next Step
6
Measure the fly-back voltage appearing at ECM pin A069
when Valve is turned Off. Is the voltage > 20 V?
Replace Valve
Go to Next Step
6
Fault Persists.
Call Hotline
Repeat the above
steps for re-
confirmation
DTC’s confirmation:
After rectification, Test Drive the vehicle for 2 KM and ensure that no DTC’s are logged in ECM.
Perform the IO / Actuator Test forEGr cooler bypass valve. Test shall be successful.

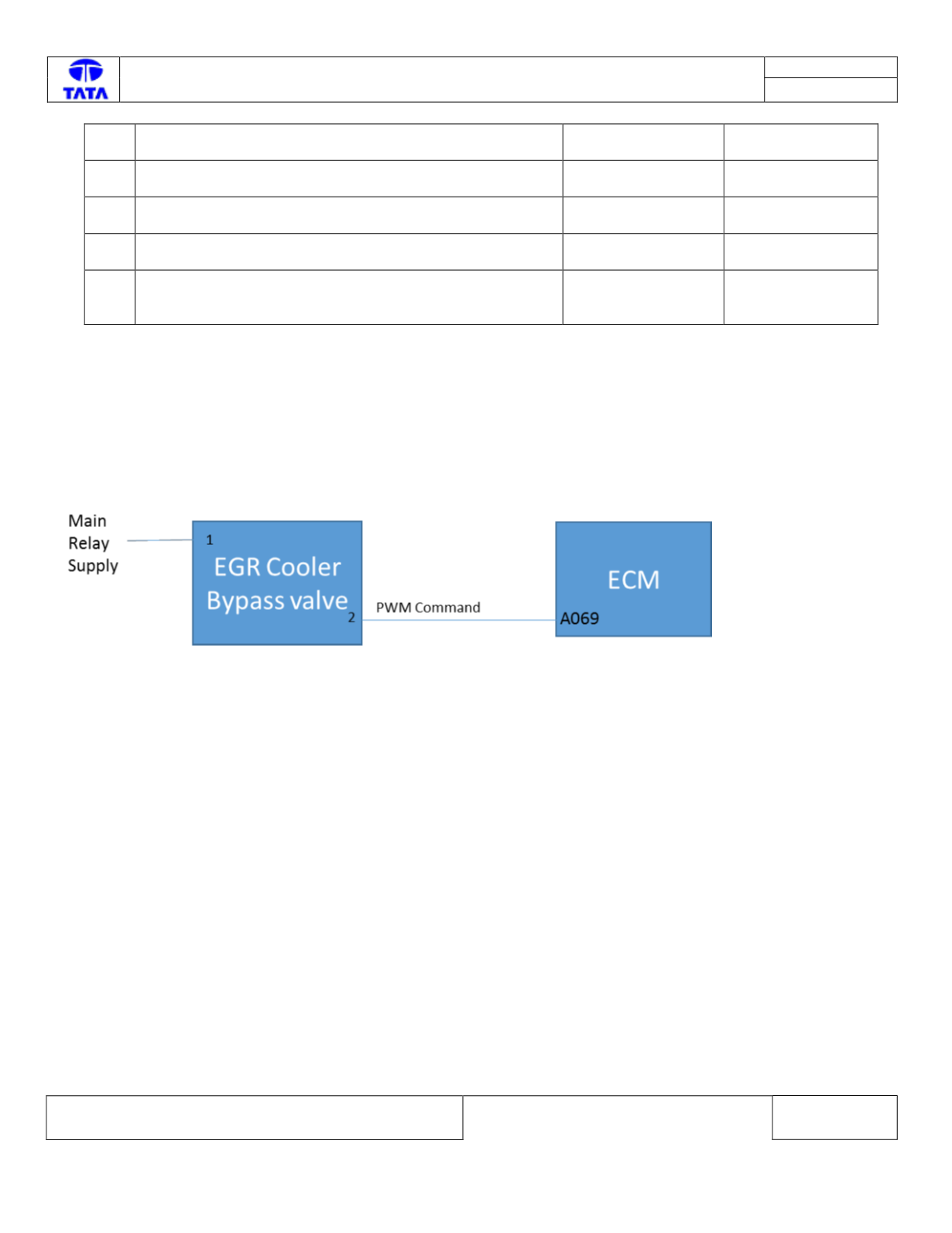

Circuit Schematic:
