Q501 4 Cylinder MT Application
DTC Troubleshooting Data
Version: 0.1
Date: 21-Sep-2018
Prepared By: Mithi Prasad, Sarang Kulkarni, Manish Gupta
Checked By: Yogesh Jadhav
Approved By: Satish Kumar P
Page: 665 of 1052
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Component Location & Image:-

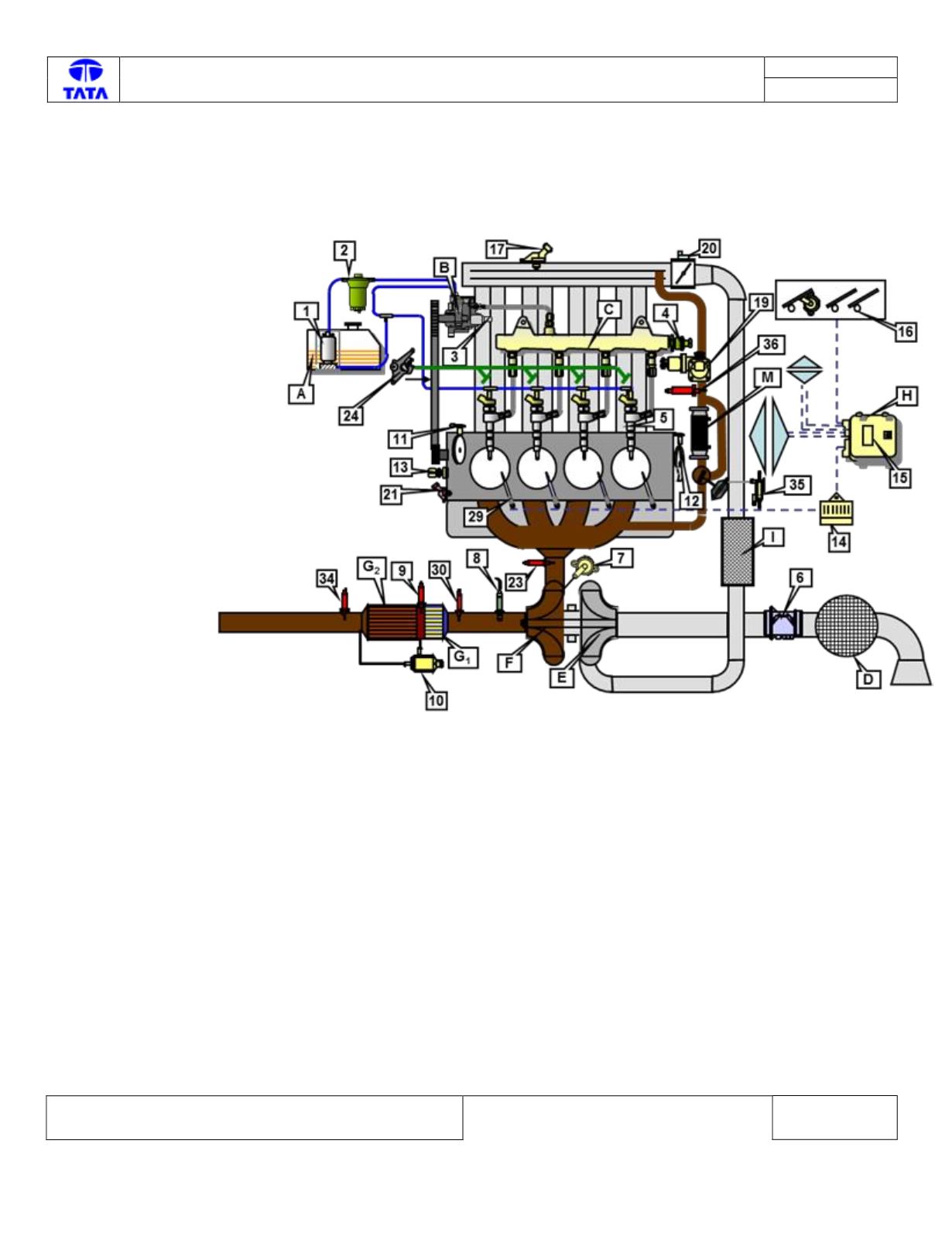

In the above top view of Engine layout, Component 29 is the low voltage Glow plug. For Cylinder based glow plug
location, pls. count the cylinder number from Crankshaft and find the glow plug location of that cylinder with the help of
above engine layout.
