SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 433 of 549
Connector View & Information:-

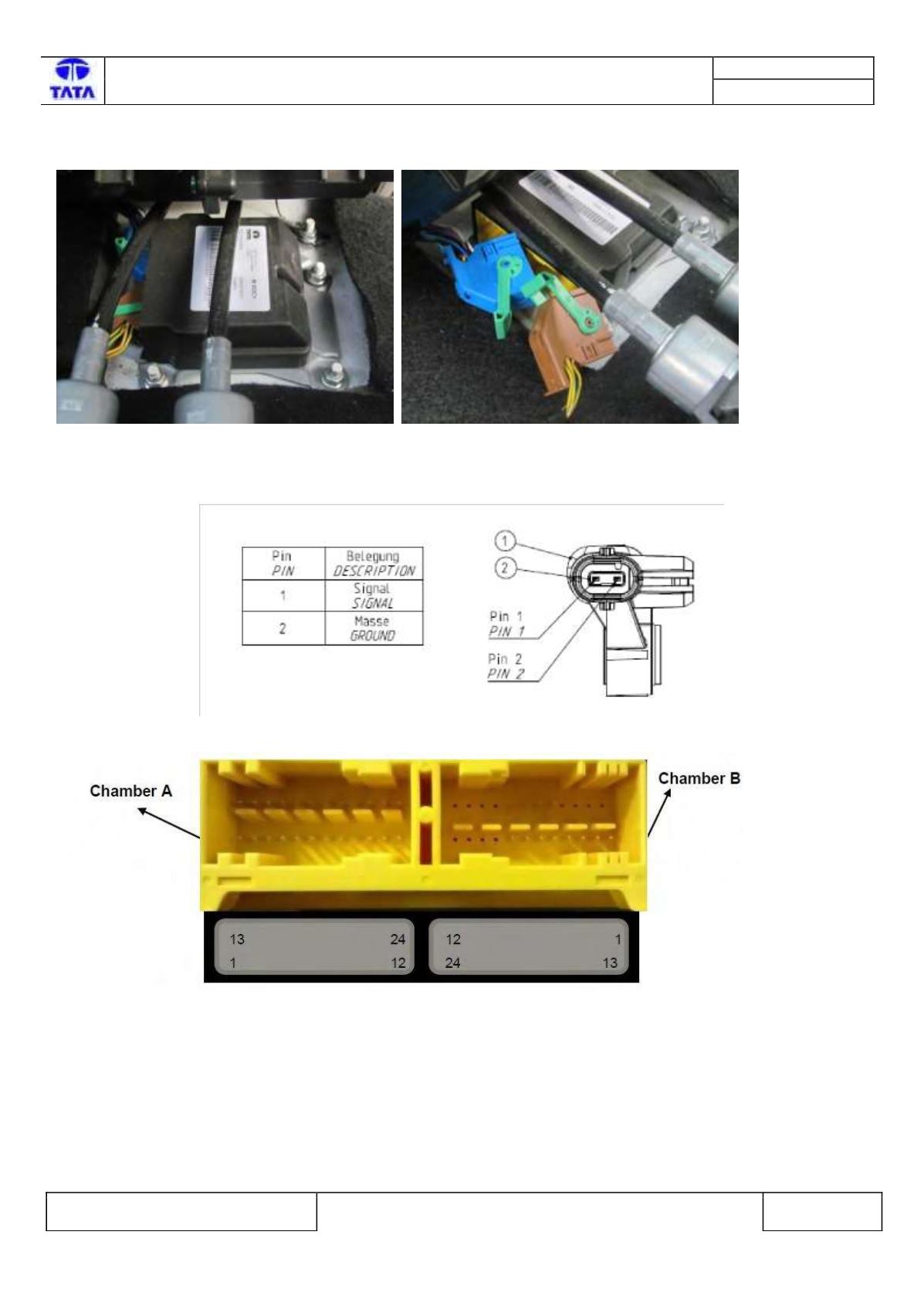

Fig393:- Passenger side peripheral sensor connector view.
Fig394:- Airbag ECU connector interface.
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:391 Airbag ECU location Fig:392 Airbag Wiring Harness connector
