SRS / Airbag

ECU – DTC Troubleshooting Guide

Version: 14.0

Date: 14-February-2017

Prepared by:Airbag COC Review &

Approved by:Sanjeev VM

Page: 235 of 549

Component Location & Image:-

Passenger Airbag Deactivation switch (PADS) is provided on the left side of the dash board.

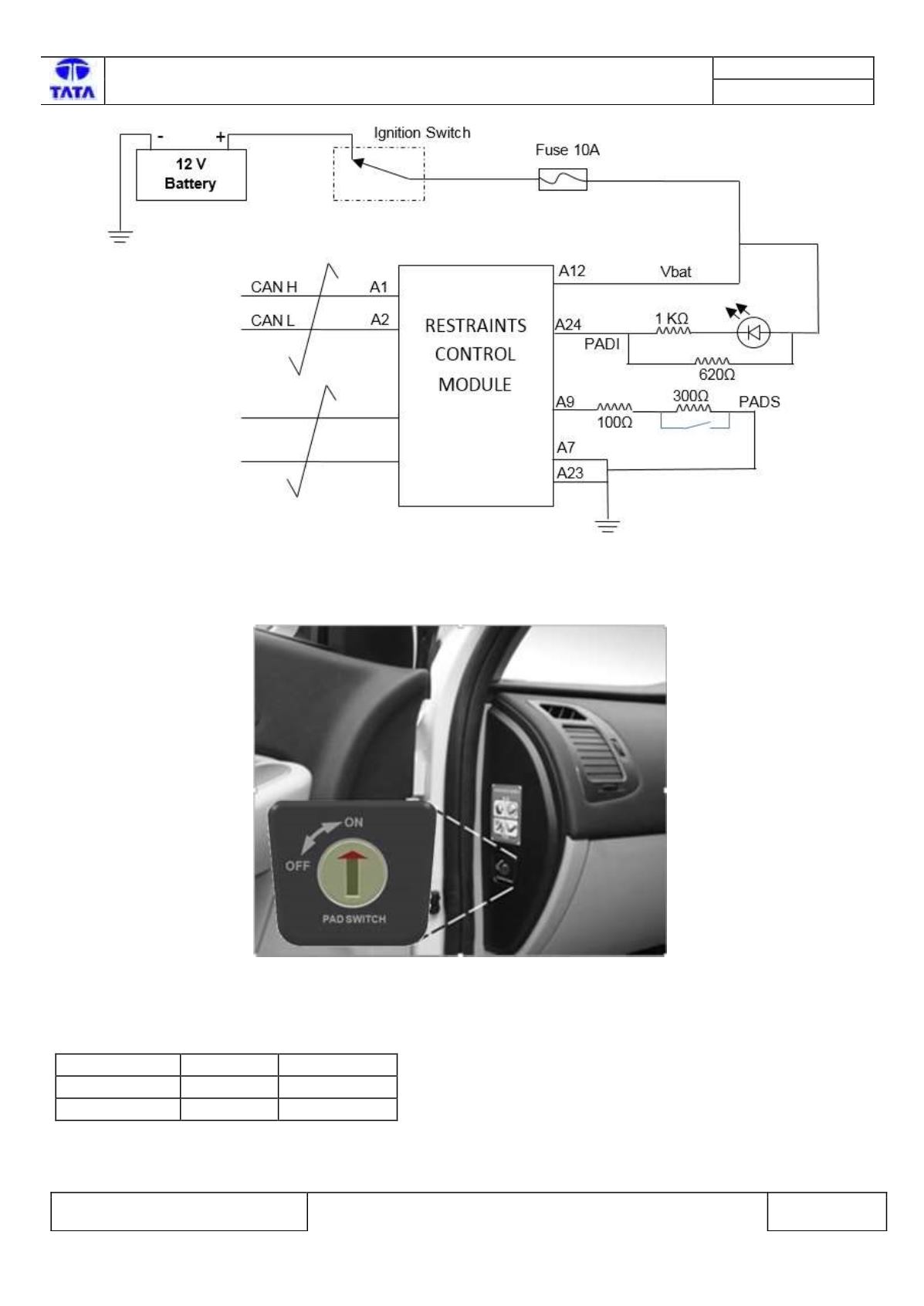

Fig215:- Passenger Airbag Deactivation switch (PADS)

Connector Location:-

The Chamber Coding & color are:

Chamber

Coding

Color

Chamber A

Blue

Chamber B

Brown
