SRS / Airbag
ECU – DTC Troubleshooting Guide
Version: 14.0
Date: 14-February-2017
Prepared by:Airbag COC Review &
Approved by:Sanjeev VM
Page: 138 of 549

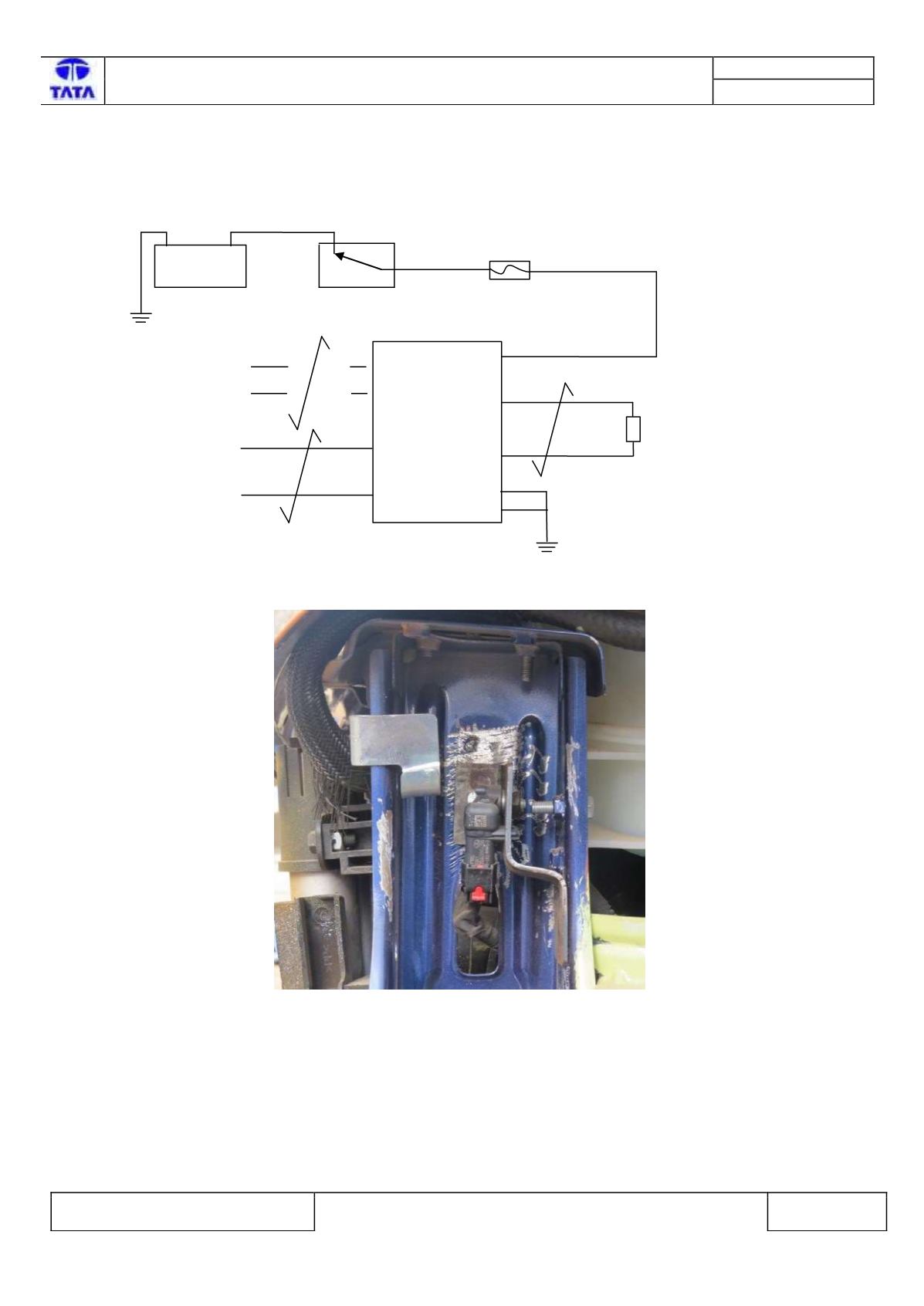

Circuit Schematic Diagram:-
Schematic shown below for illustration
Battery>>>>>Fuse>>>>Relay>>>>>>>Sensor/Actuator>>>>>ECU
Component Location & Image:-
Fig133: Frontal Impact Passsenger sensor is usually located in the radiator support vertical member.
Connector Location:-
The Chamber Coding & color are:
+
V
12
Battery
A23
CAN H
Ignition Sw itch
CAN L
A12
A7
-
RESTRAINTS
CONTROL
MODULE
Passenger
Front
Impact
Sensor
A1
A2
Fuse 10A
B7
B8
PFIS -
PFIS+
Vbat
