DTC Troubleshooting Data
Version: 1.0
Date: 16-Oct-2018
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Author: ERC
Page: 144 of 202
DTC’s confirmation:-
After rectification, ensure the following points before handing over the system to the customer
1) Battery Voltage is between 9 to 16V.
Component Location & Image:-
NA
Connector Location: -
Behind the CCM ECU
Body.

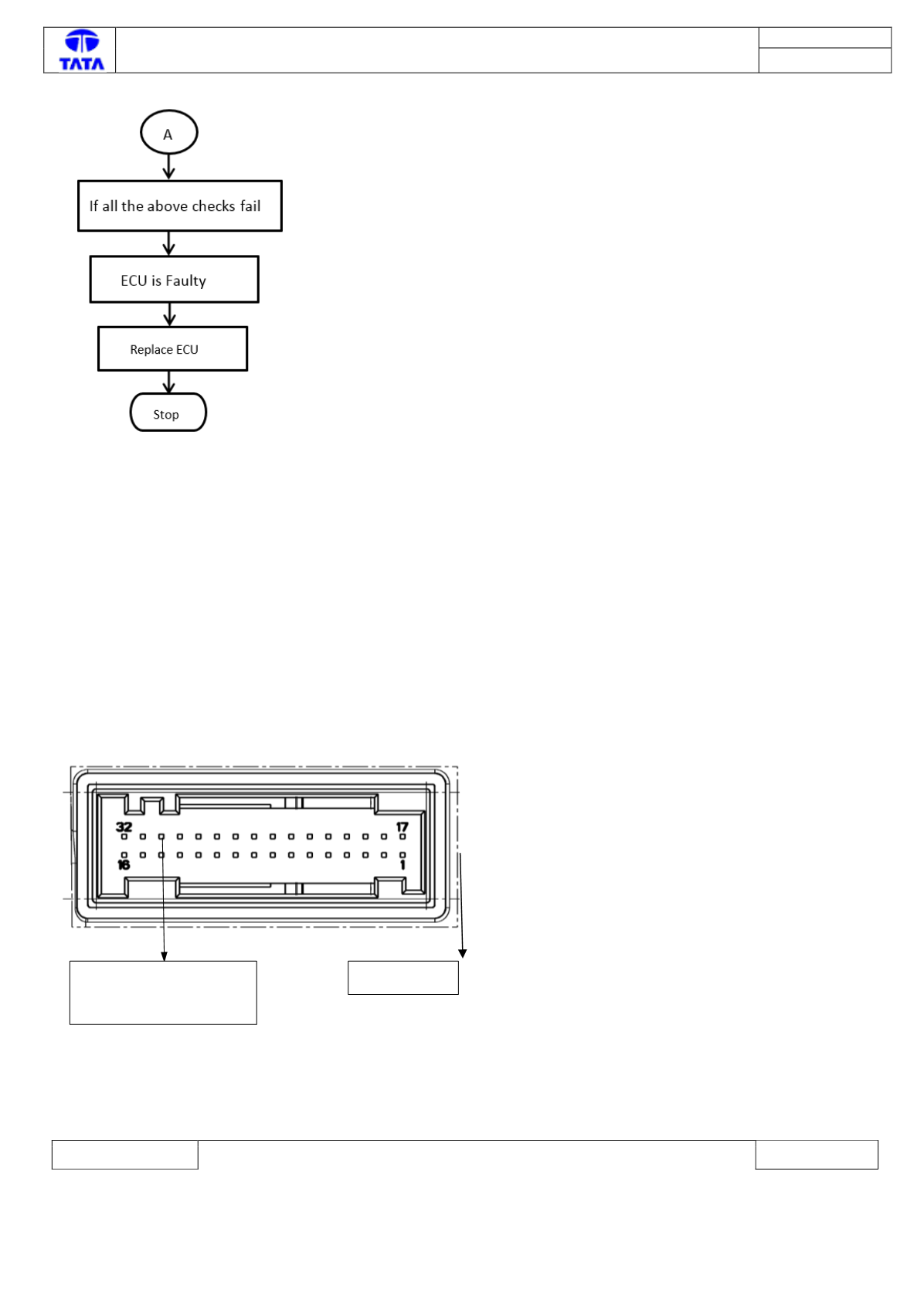

Connector View & Information:
Inspection Method: -
Use multimeter check continuity pin 30 & ground pin.
GND (pin 1)
Power supply for FATC
Control Head (pin 30)
