DTC Troubleshooting Data
Version: 2.0
Date: 28-Jul-17
Author: ERC
Page: 173 of 244
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
a) Physical check of temperature change when requested.
b) Read ECU parameter,
sensor Solar Load Status .
Circuit Schematic Diagram:-
“Refer the circuit schematics from the tool”

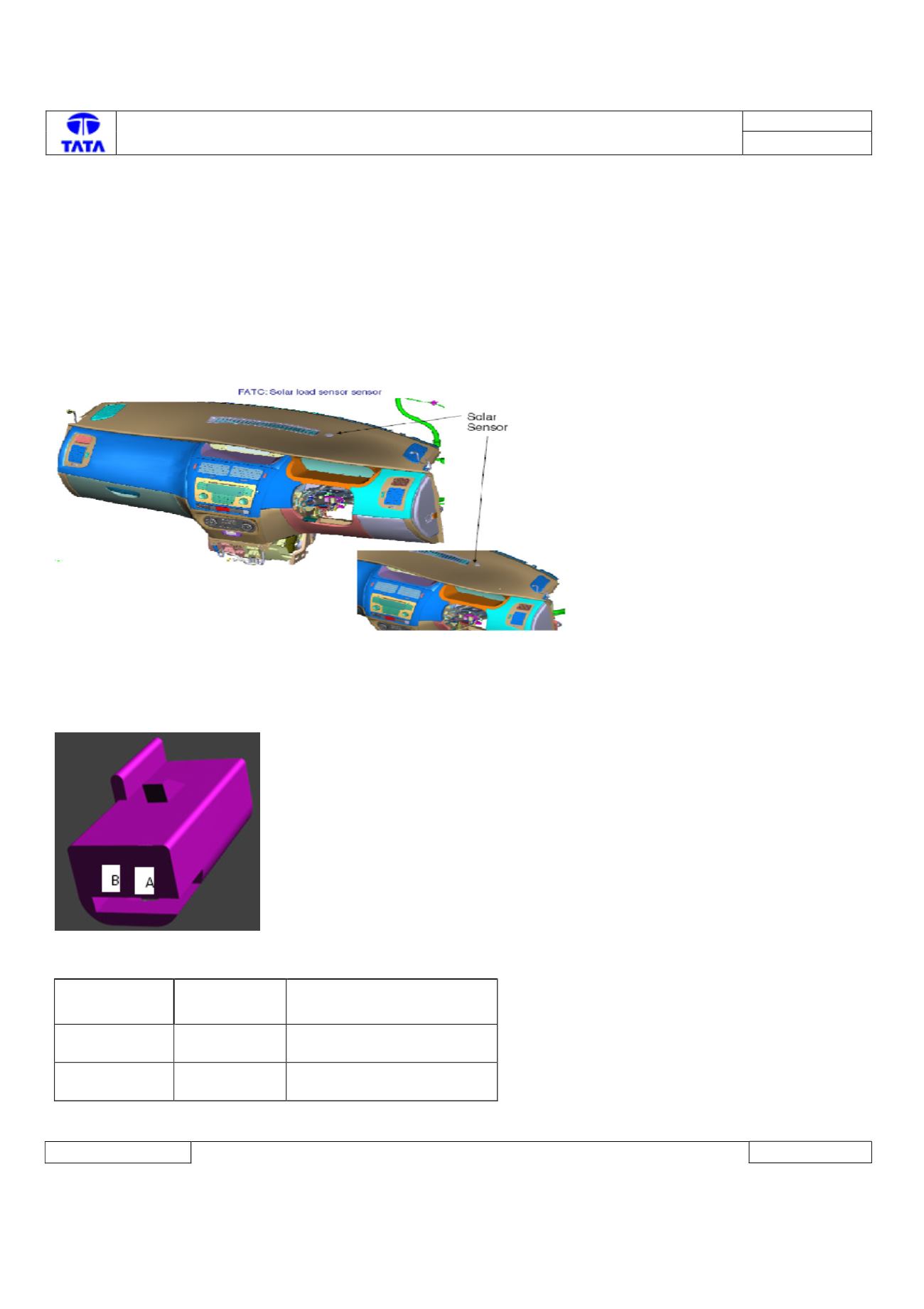

Component Location & Image:-
Near Wind shield and on top of dash board.
Connector View & Information: -
Pin Details:-
Pin
num
ber
Signal
Name
Signal
Descri
ption
A
SolarSensSig
Solar Sens(Sensor) Signal
B
SolarSensGnd
Solar Sens(Sensor) Gnd
