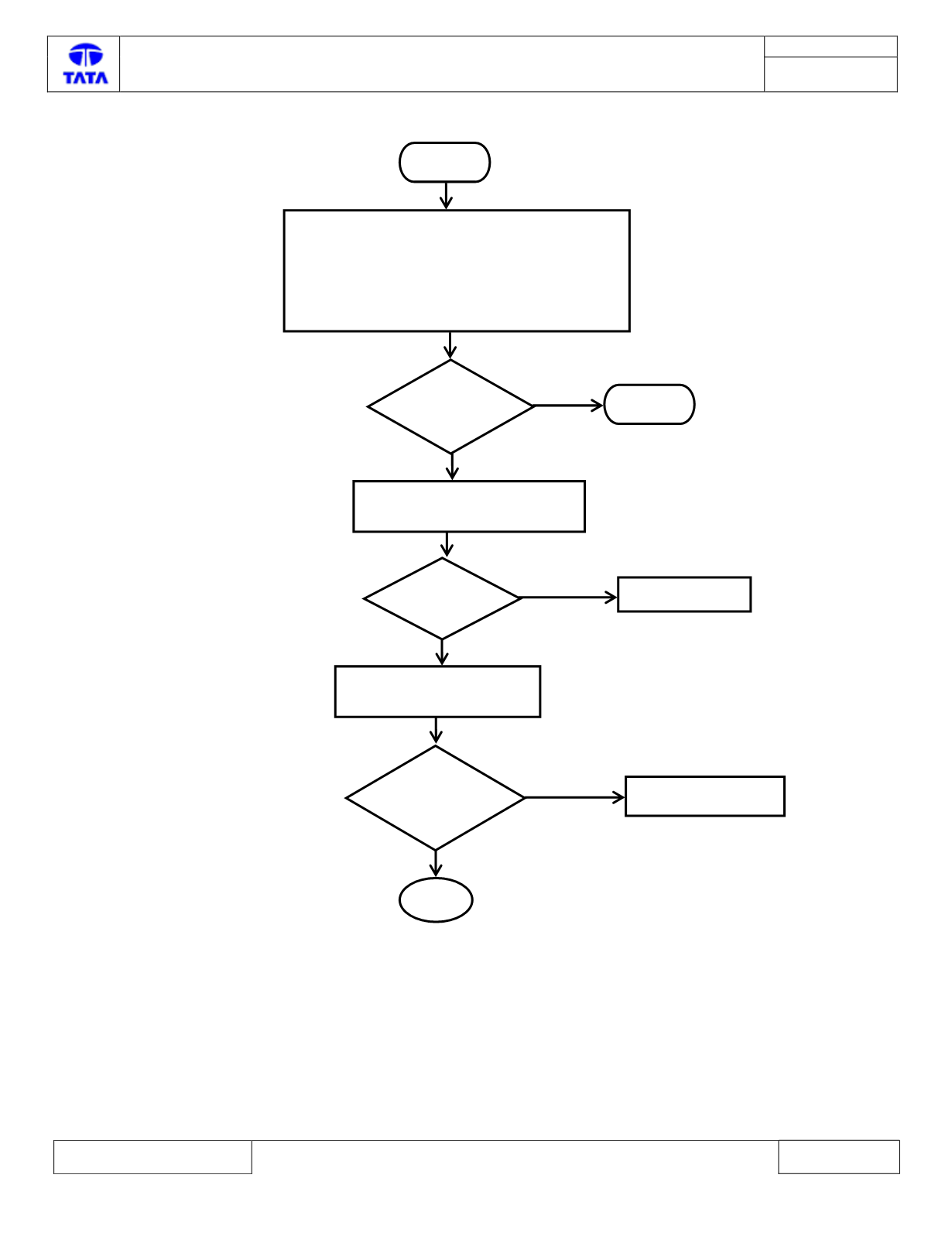

Trouble Shooting:
EXAMINE THE FUSE (25 AMP) OF
VOLTAGE SUPPLY (UB_VR)
IS FUSE
OK?
CHANGE THE FUSE
NO
A
YES
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C1026-1C IS PRESENT
CHECK BATTERY FOR
CHARGING
IS BATTERY
CHARGING?
REPLACE THE BATTERY
NO
YES
YES
