ABS DTC Troubleshooting Data
Version: 1.0
Date: 03-Dec-15
Author: ERC, Chassis E&E CoC
Page: 60 of 154
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

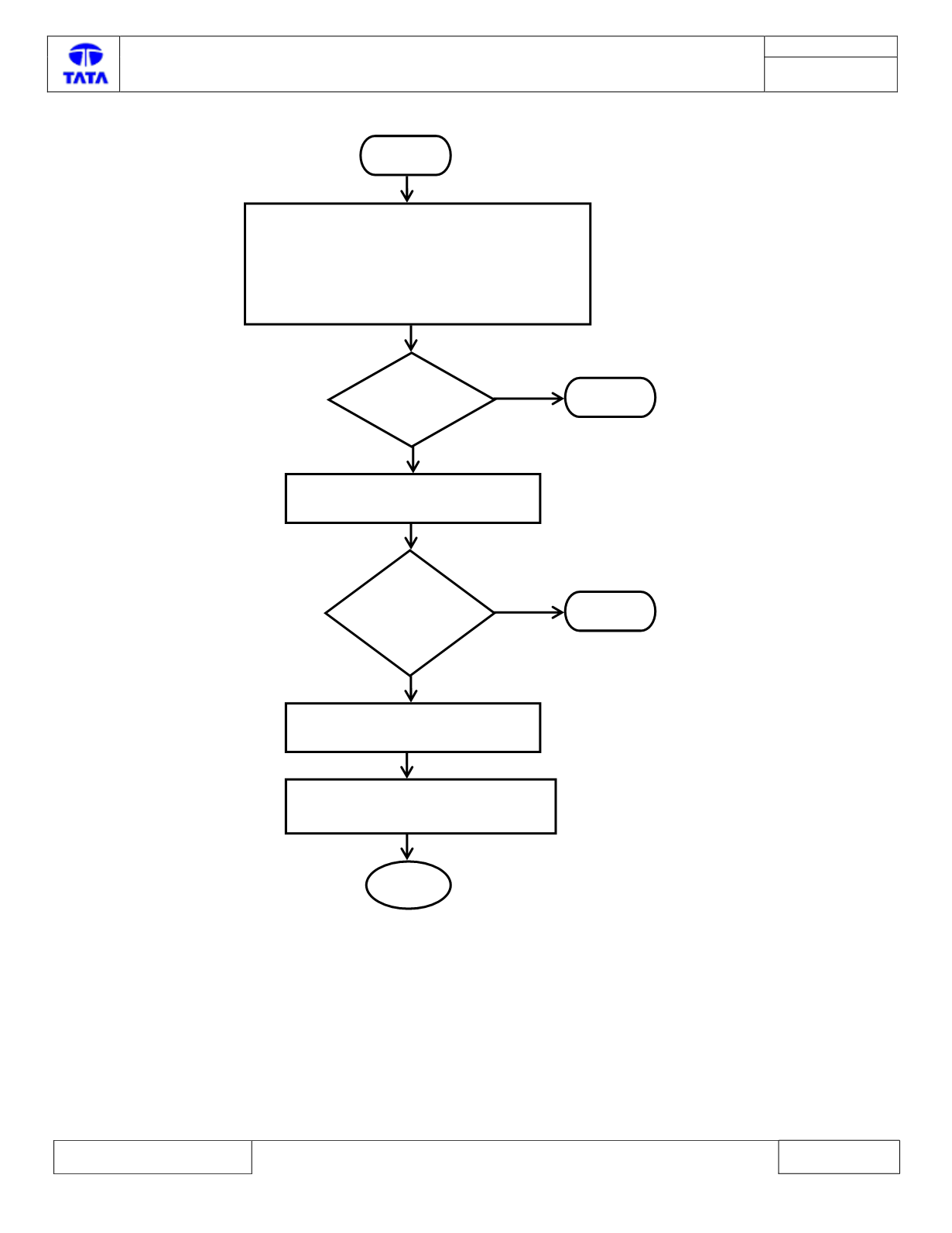

Trouble Shooting:
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C131E-01 IS PRESENT
A
CHECK ALL WHEEL SPEED SENSORS
(WSS)
ANY
DEFECTIVE
WSS?
STOP
NO
YES
YES
EXCHANGE DEFECTIVE WHEEL SPEED
SENSORS (WSS)
1. CHECK TIRE/RIM SIZE AS PER VARIANT
2. ALL 4 TIRES SHOULD BE OF SAME SIZE
