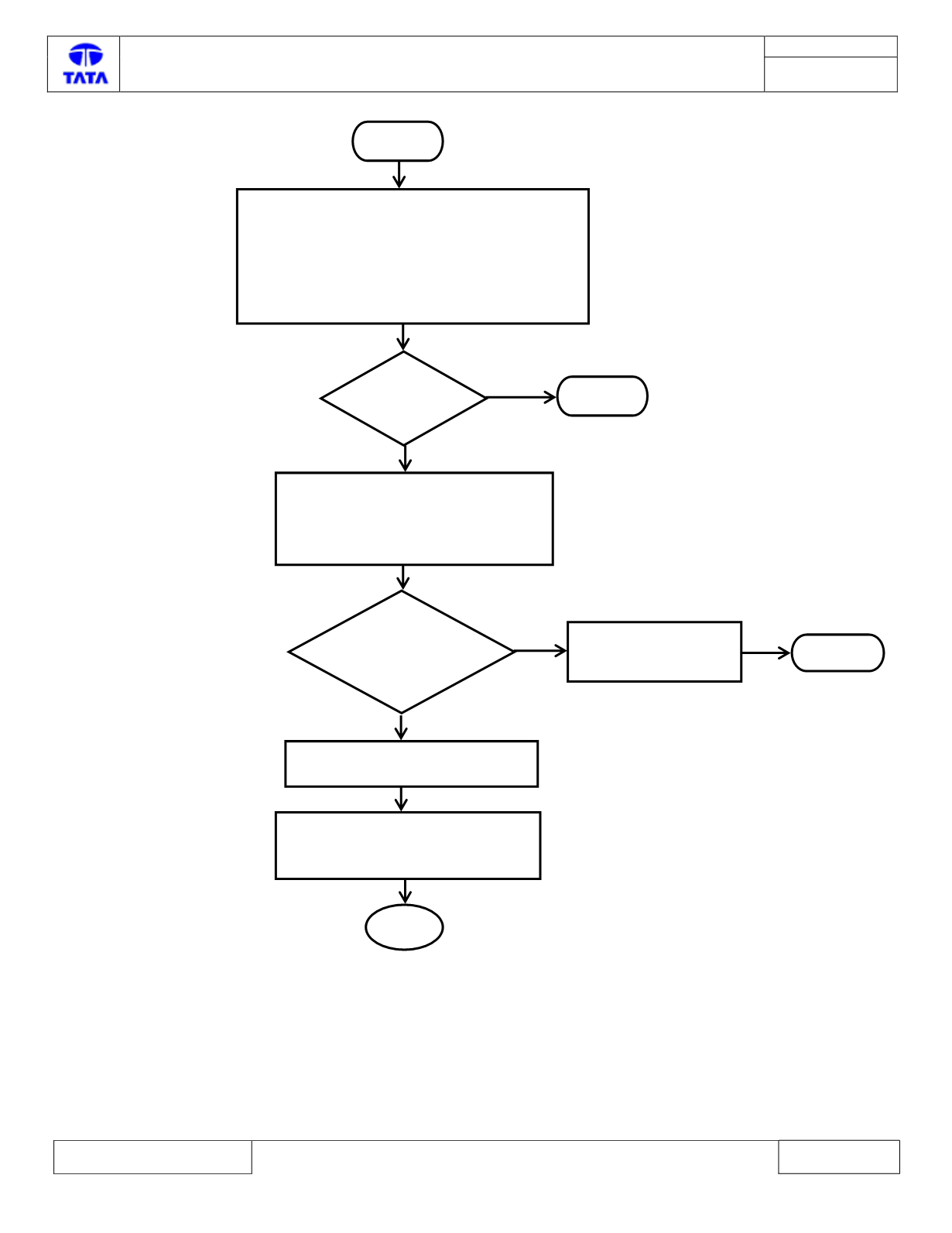

Trouble Shooting:
1. CHECK THE TIRE SIZE MOUNTED FOR THE
VARIANT
2. ALL THE FOUR TIRES SHOULD BE OF
SAME SIZE
START
IS DTC
PRESENT?
STOP
NO
YES
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C0034-62 IS PRESENT
IS THERE ANY
MISMATCH IN
TIRE SIZE?
YES
REPLACE THE RELEVANT
TIRE
NO
STOP
EXCHANGE THE WHEEL SPEED SENSOR
1. PERFORM IGNITION OFF/ON
2. DRIVE THE VEHICLE AROUND 60KMPH
3. CHECK THE DTC
A
