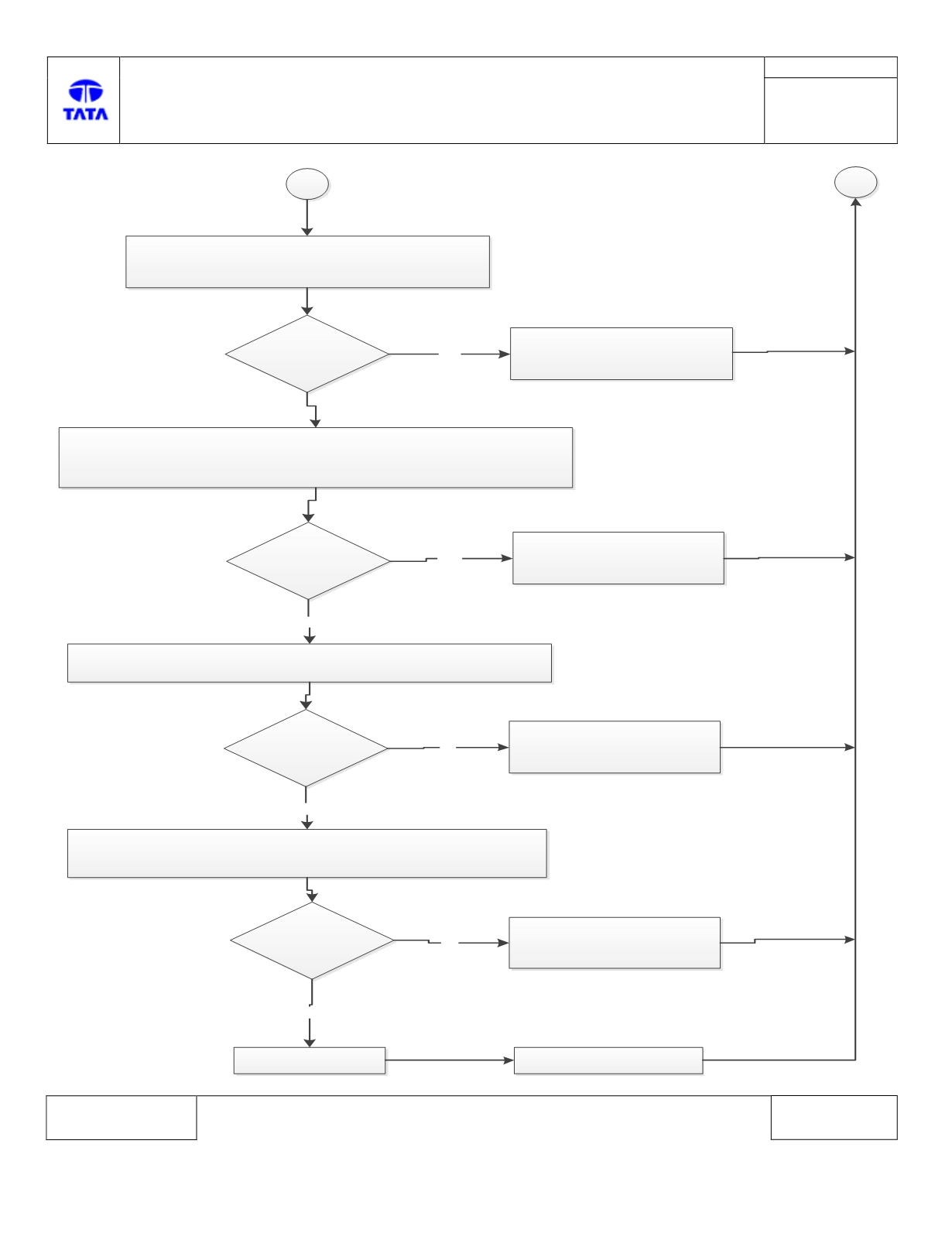

Check continuity between PEPS connector
pin
[C1-16]
and PEPS ground pin
[C1-06/c3-01].
Continuity
found?
1. Remove back antenna matting connector and PEPS antenna
connector.
2. Perform visual check of connector for pins bend or damaged etc.
Is connector
faulty?
PEPS ECU faulty
Replace PEPS ECU
Correct connector fault
(Terminals bend)
Correct wiring harness.
(open ckt.)
Yes
No
B
Verify that correct back antenna is placed. Check whether no. is
part no. 543854209904
No
Is antenna placed
correct ?
Place correct antenna
No
Check for faulty Antenna : Verify the continuity between front
console antenna terminals. If no continuity observed, i.e.
antenna is faulty.
Is Antenna
faulty?
Place correct antenna
Yes
No
Yes
