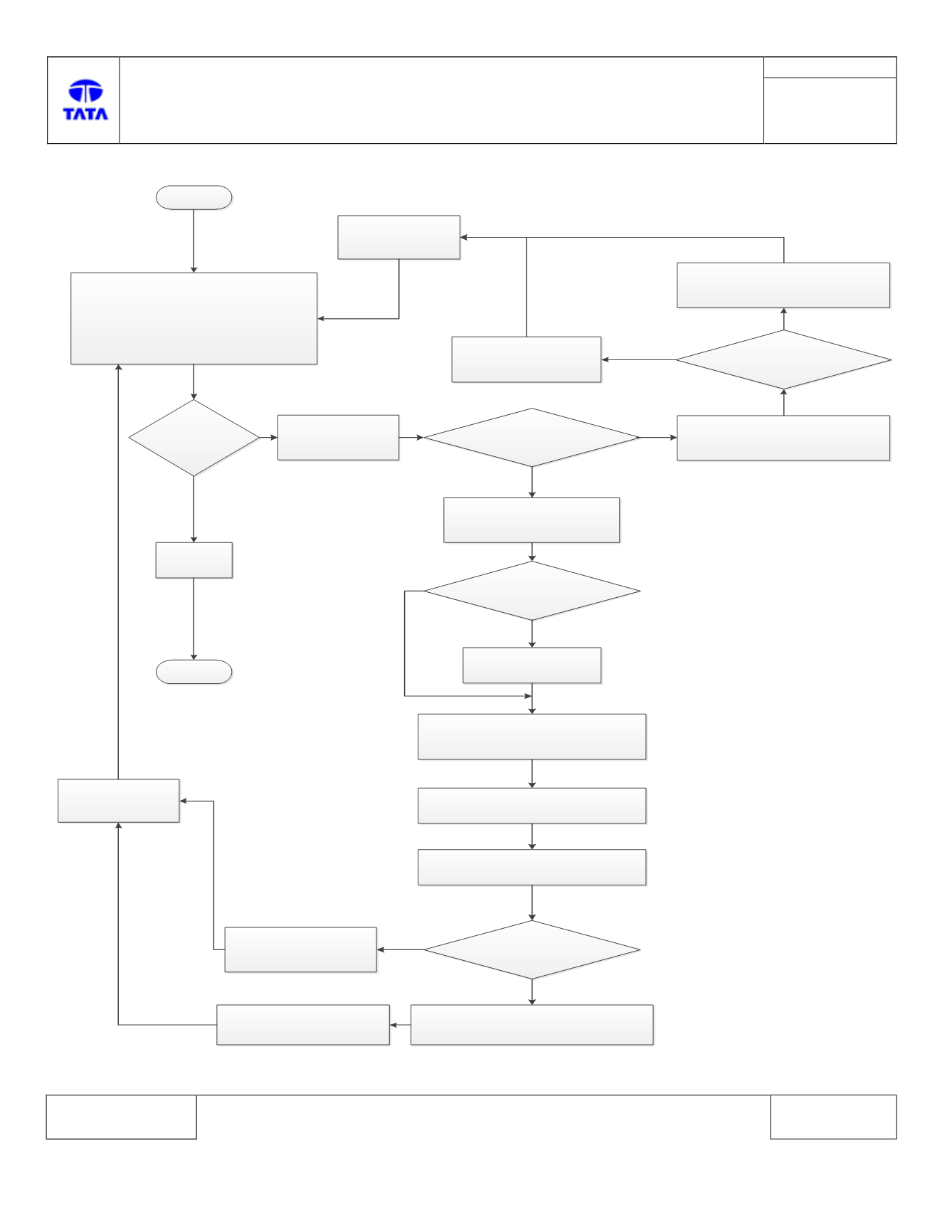

Trouble Shooting:-
Start
1. Keep vehicle in static condition.
2. Turn ignition ON -> off ignition.
3. Close all doors and vehicle in unlock
state.
4. Keep Paired UID outside the vehicle
near Co-Driver door within 1.5 mts.
5. Press Co-Driver Door handle switch.
Is Vehicle get
locked?
Yes
No
Is Co-Driver door handle
switch operating
normally?
Yes
Remove Connector-1 in
PEPS and check pin-14 &
pin-4 for bending/shorting
Is Co-Driver
DHS pin
is bend?
No
No
Check continuity between Pin-14 and
Pin-4 of Connector-1 of PEPS ECU.
Switch should not be permanently
short or open.
Fix the pin bending.
Take out the Co-Driver DHS switch
from door handle out of door handle
and check switch function.
Is Co-Driver DHS out of
handle is operating
normally?
Fit properly Co-Driver door handle
switch in handle such that it should
be operable normally.
Yes
No
Replace Co-Driver door
handle switch
Open the picktail connector of
Co-Driver door handle on co-driver
door.
Stop
Check for the wire cut/open & short circuit to
battery on the harness for co-driver door
handle switch signal.
Is DHS Short
Or
Open?
Replace Co-Driver door
handle switch
Fix the cut/open on the harness
for co-driver door handle switch
signals.
Check normal operation of Door
handle switch, i.e no fault of switch
permanent short or open.
Connect the battery
Negative terminal.
Remove vehicle
battery Negative
No
Yes
Yes
No
Clear
B1319-11
DTC only.
Connect the battery
Negative terminal.
