Vehicle Platform: OSPREY / AMP
ECU Name: PEPS
DTC Troubleshooting Data
Version: 1.2
Date: 29 Mar 2017
Author:
Rajasekhara Reddy
Page: 50 of 369
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
A
B

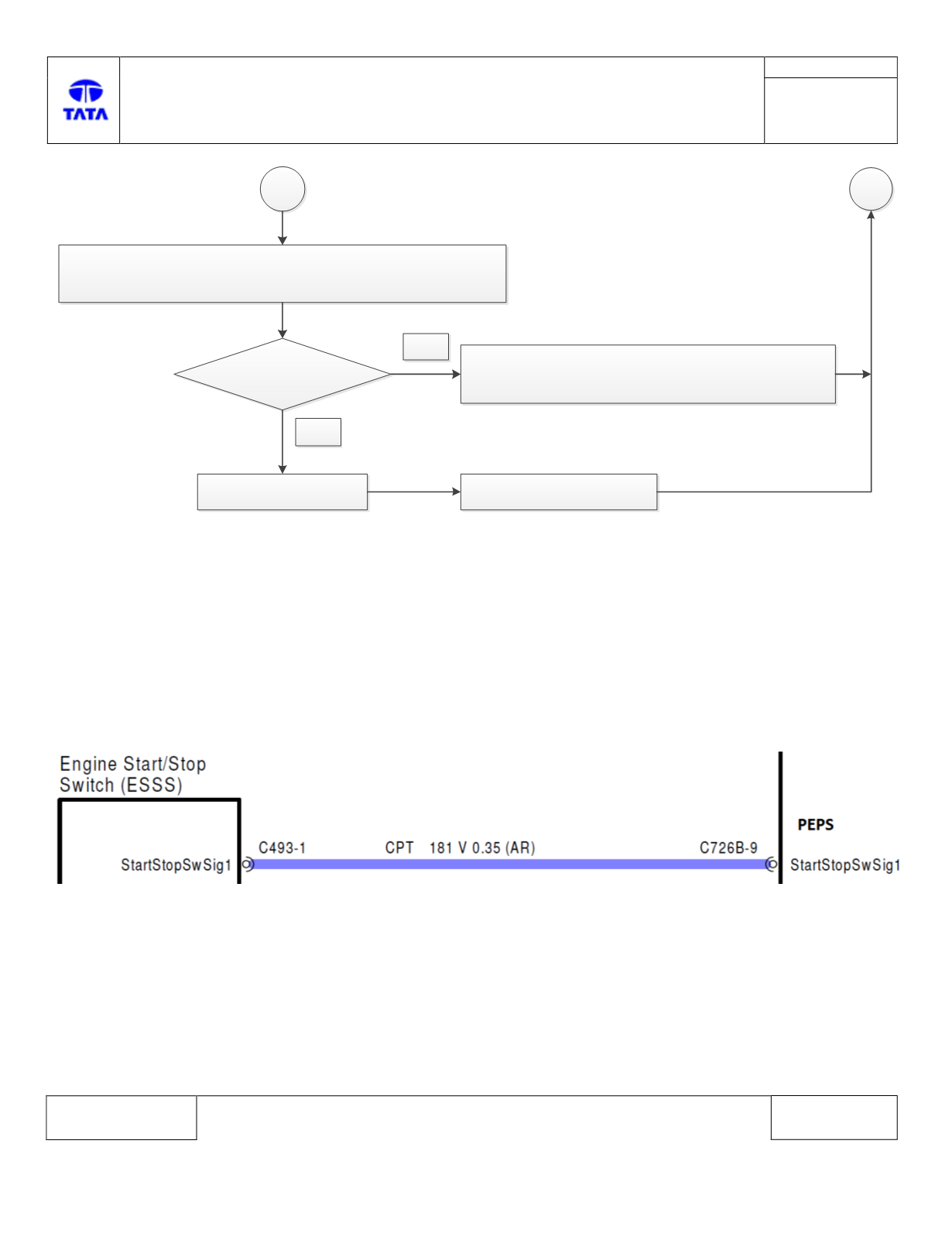

Perform the visual check of Start Stop switch
mating connectors for pin bend or damaged etc.
Is
connector
faulty?
Correct connector fault at Start stop
switch mating connector (Terminal Bend)
Yes
No
PEPS ECU Faulty
Replace PEPS ECU
DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
a) Run Input Switch Test routine, operate switches manually and check, DTC B101A – 13 should not be returned with the
Routine results.
Circuit Schematic Diagram:-
Note:-
For detailed information please refer latest PEPS wiring harness schematic.
