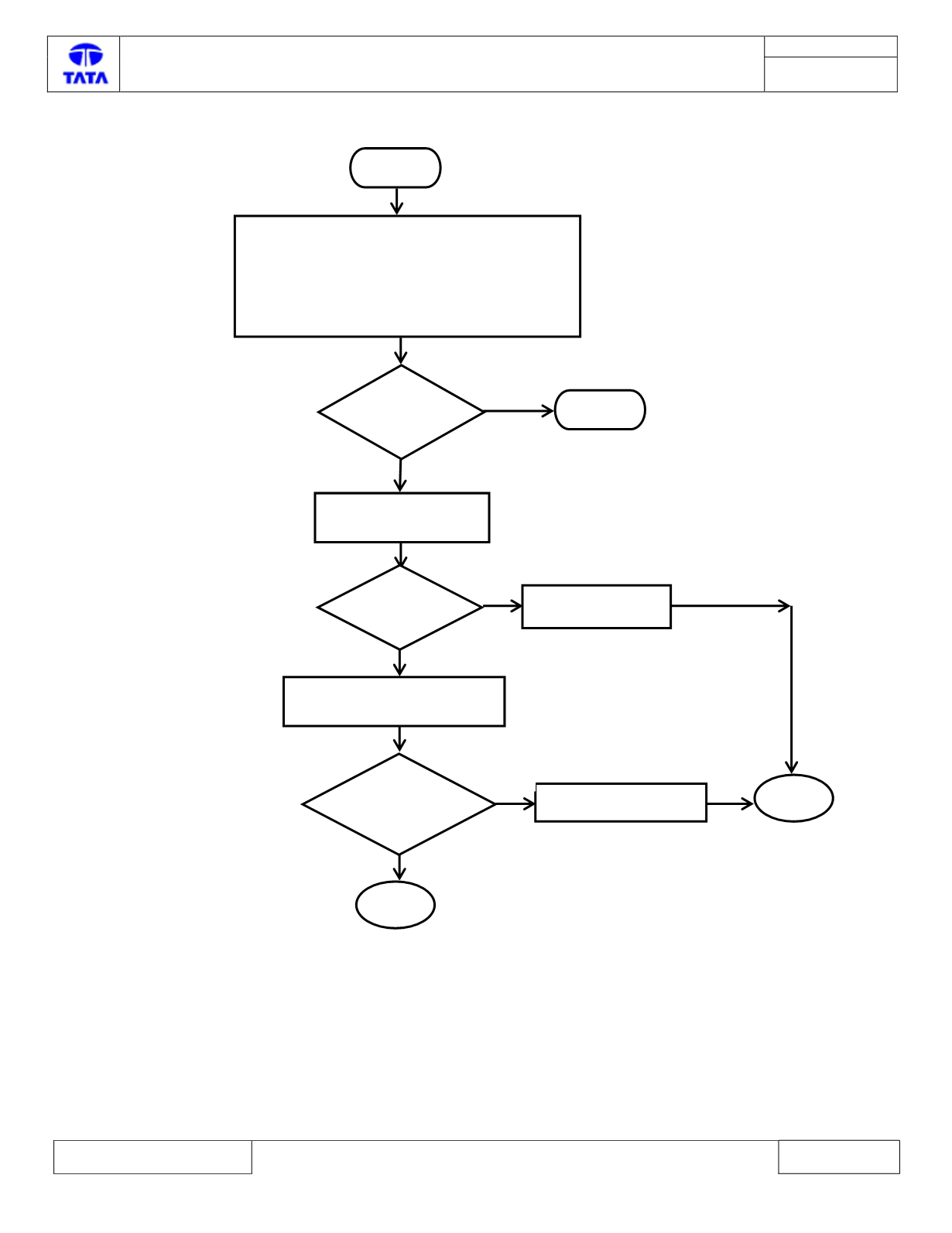

Trouble Shooting:
NO
EXAMINE MOTOR RELAY
FUSE (40 AMP)
IS FUSE OK?
REPLACE THE FUSE
YES
A
B
START
IS DTC
PRESENT?
STOP
NO
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC C100C-01 IS PRESENT
CHECK BATTERY FOR CHARGING
IS BATTERY
CHARGING?
REPLACE THE BATTERY
NO
YES
YES
