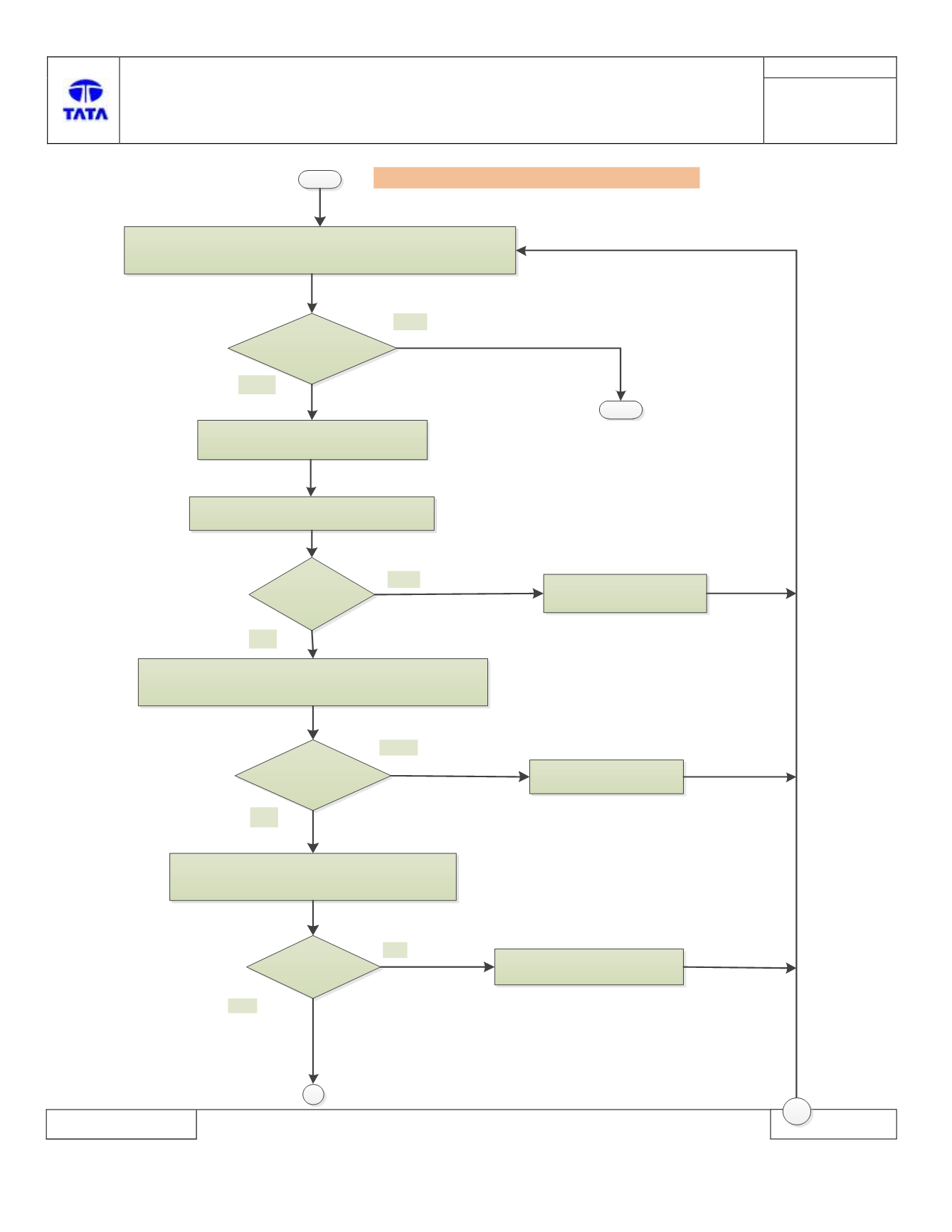

B220A – 11: Front fog Lamp control Switch – Short to Ground

START

Connect Diagnostic tool and Run Input Test Routine and operate the

switches as mentioned in the input switch test routine specification.

Is DTC B220A-11 logged

by Routine?

Disconnect vehicle battery connection.

(Please follow the safety guidelines)

Check BCM and Facia / Fog lamp switch

connectors for terminal backout

Are connectors

loose?

Correct connector fault

(Terminals Bend)

1.Remove BCM Connector.

2.Perform visual check of connectors for pins bent or damaged etc.

Is connector faulty?

STOP

Check continuity between BCM connector pin

[ C1-37

]

Harness side) with Ground

[C1-34/C1-47]

Continuity Found?

Correct BCM side wiring harness

( Short to ground)

Reconnect connectors firmly

YES
