Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 625 of 737
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

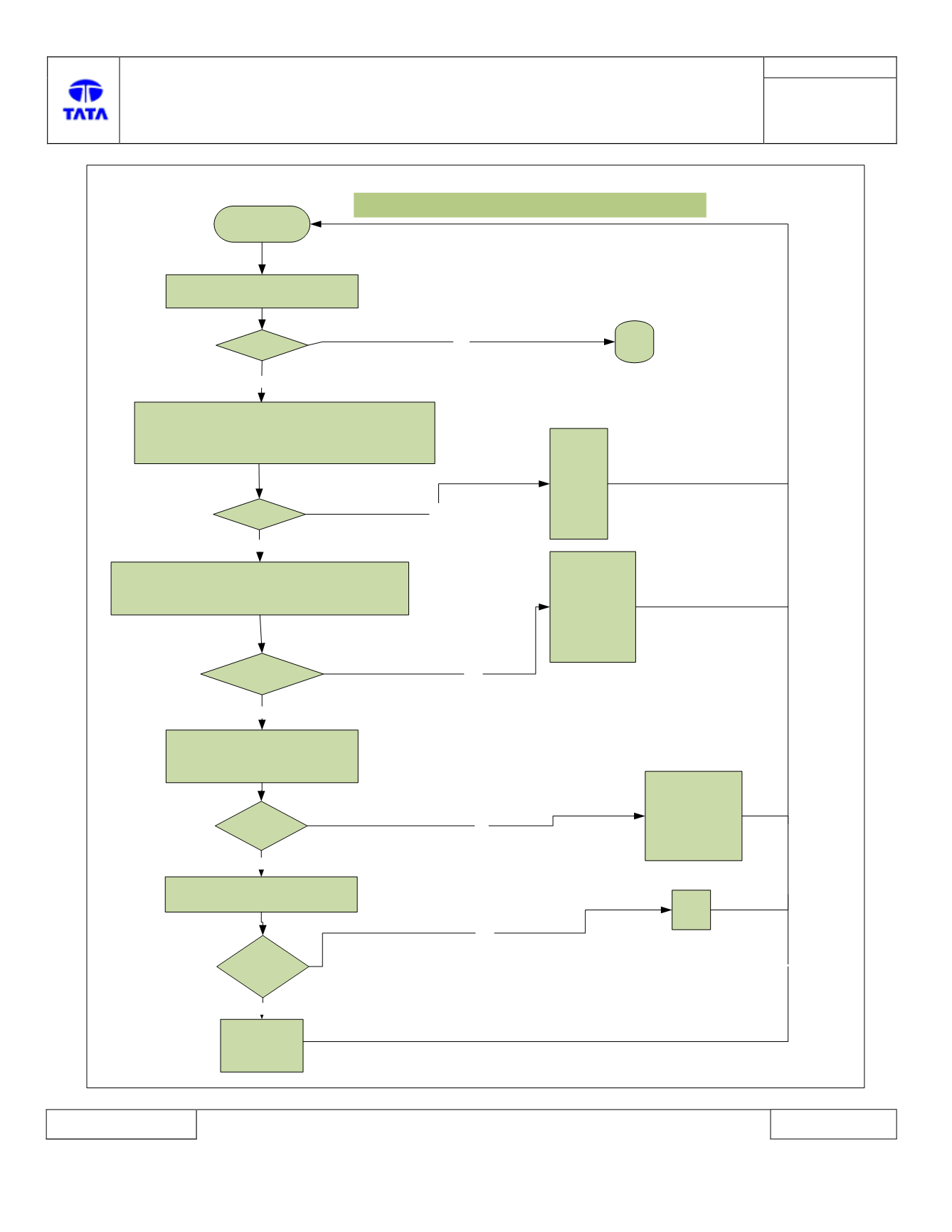

Normal vehicle
setup
start
Connect Diagnostic tool and Read
DTC. Switch ON front wash and read
DTC.
Is DTC
B223A-15
NO
YES
Stop
Remove Vehicle Battery connections.
(Please follow safety guidelines)
1) Remove BCM connector and check for backout/ pins
bend/ damages.
Yes
Check continuity between
1) BCM connector B pin 16 and Connector A pin 9 in the
harness connector.
2)BCM connector B pin 16 and Connector C pin 1/ 2 in the
harness connector
Yes
Correct the wiring
harness short and open
circuit.
Remove the Washer motor connector
and check for continuity from
connector B pin 7 to Wash motor conn
pin1.
Is continuity
observed
Yes
No
Correct the wiring
harness short/
open circuit.
Yes
Replac
e the
motor
Any fault
observed
Correct the fault
No
Any continuity
observed
No
Is motor faulty
No
B223A-15 Front washer short to Batt or Open
Remove the rear Washer motor and
check the motor is working by
providing external supply and GND
Replace the
ECU
