Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 614 of 737
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
a) Switch ON front washer by requesting through combi switch and Read DTC.
B220B- 11 shall not be logged.

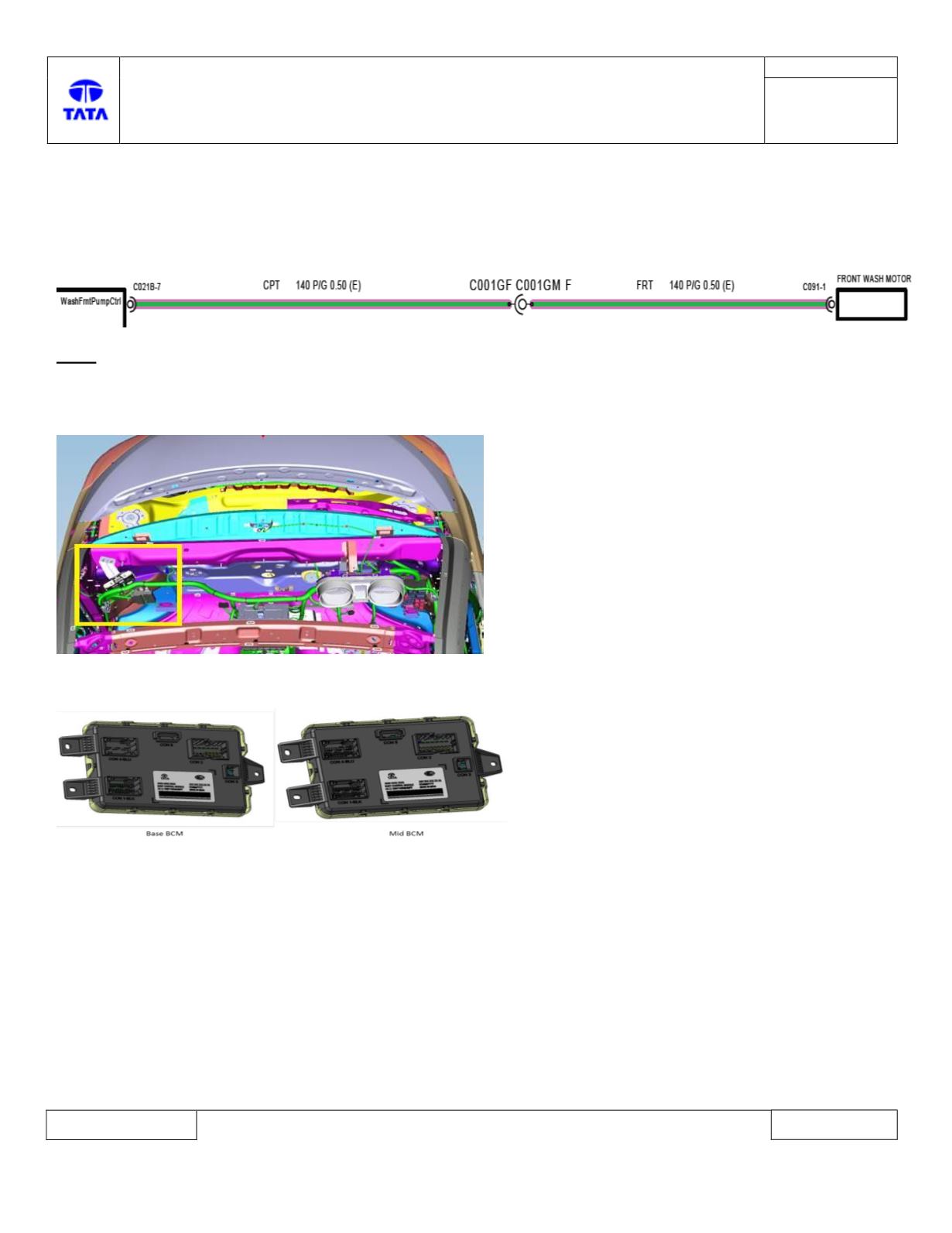

Circuit Schematic Diagram:-
Note:
For detailed information please refer latest BCM wiring harness schematic.
Component Location & Image:-
