DTC’s confirmation:-

After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.

a) Run Input Switch Test routine, operate switches manually for rear wiper and check, DTC B223E – 12 is not returned

with the Routine results.

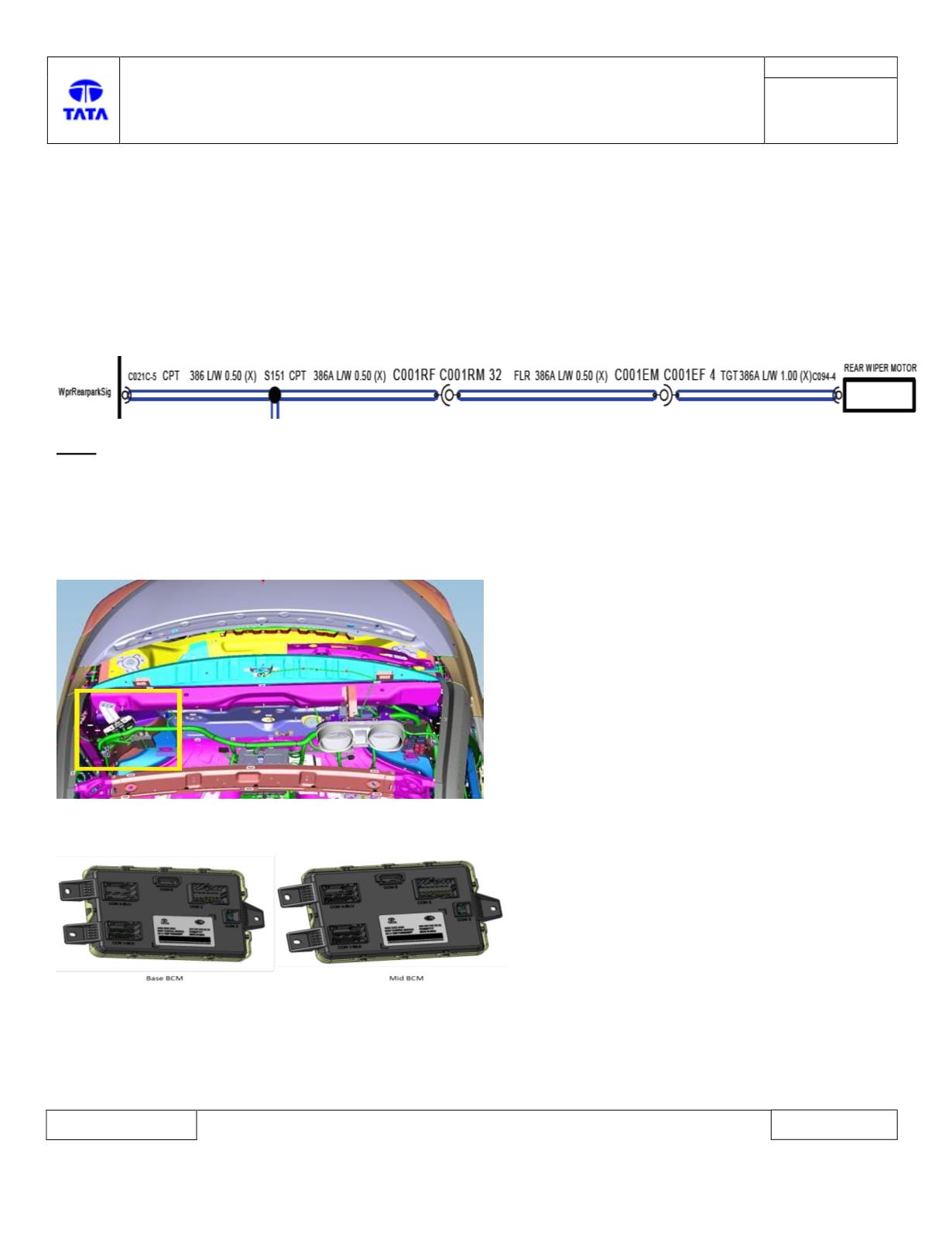

Circuit Schematic Diagram:-

Note:

For detailed information please refer latest BCM wiring harness schematic.

Component Location & Image:-
